Key Features

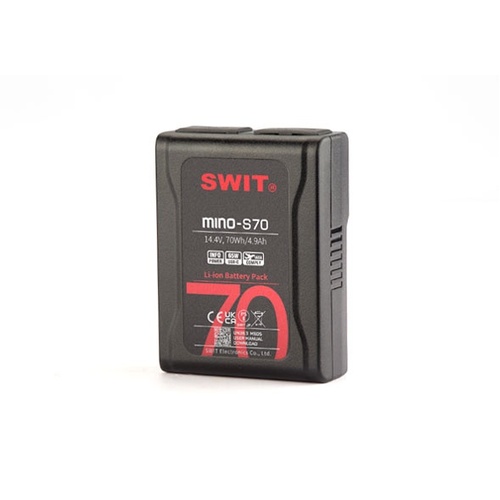

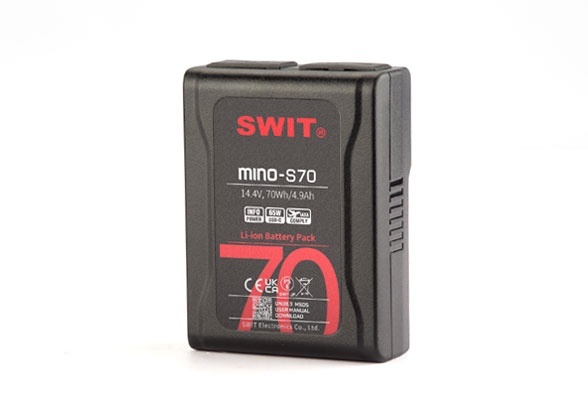

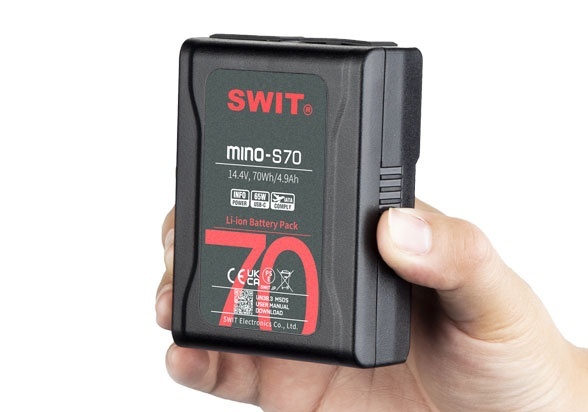

Tiny Size 70Wh V-mount: MINO-S70 is a pocket fit tiny size V-mount battery for handheld cameras, monitors and other camera gears. It powers RED V-raptor for at least 1 hour and offers minimum weight for stablizer installation.

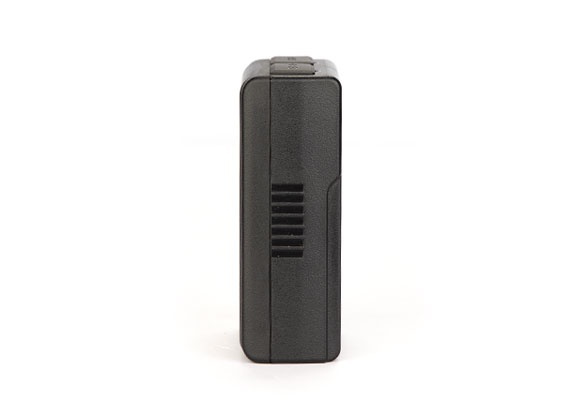

Thinner and Light Weight: The MINO-S70 is 37mm thickness, standard V-mount connector, and only 419g light weight for handheld camera gears.
70Wh, 100W/8A Load: MINO-S70 consists of 4 high capacity cells, with 70Wh/4.9Ah high capacity, and support at least 100W/8A constant high load output.

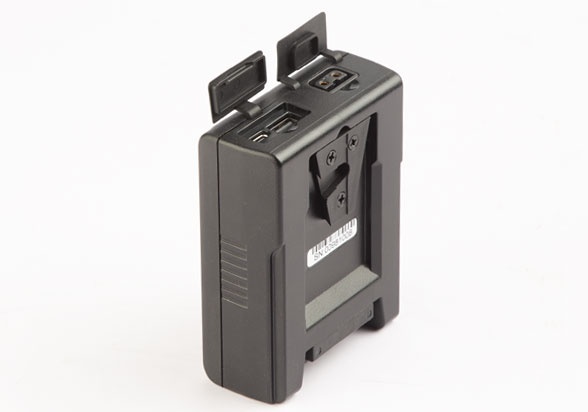

D-tap, USB-A and USB-C: The tiny size MINO-S70 didn't compromize on DC sockets.
D-tap x1 - 100W/8A load (Support charging input)
USB-A x1 - 5V/2A output
USB-C x1 - 65W output and 35W charging input
USB-C 35W Charging Input: MINO-S70 battery can be charged by USB-C charger, supports PD 5V/9V/12V/15V/20V(Max) 1.75A, 35W charging input, which means you can fully charge the 70Wh battery within 2.5 hours.
USB-C 65W Power Output: You can power laptop via USB-C by MINO-S70 battery on the filmset. Supports 5V 3.25A, 9V 3.25A, 12V 3.25A, 15V 3.25A and Max 20V 3.25A, BC1.2, PD2.0/3.0, QC2.0/3.0, FCP, SCP multiple protocols. (For Macbook Air/13, Macbook Pro 13/15/16, Huawei Matebook E/12/X13/XPRO, Thinkpad, HP, ASUS, Dell and almost all laptops with USB-C ports)
Wire-Free Internal Tech: MINO-S70 has innovative “Wire-Free” internal technic. All the cells, D-tap, USB-A, USB-C, power indicator devices are directly soldered onto PCB, no connecting wires, to reduce internal resistance effectively, and make the circuit stable, safe, and reliable.
Specifications
› Tiny V-mount battery, Pocket fit
› Support RED V-Raptor install
› 70Wh/4.9Ah high capacity
› 100W/8A constant power load
› 1x D-tap output & charging input
› 1x USB-A 5V/2A output
› 1x USB-C 35W input & 65W output
› 4-step LED power indicator
› Power info for both SONY & RED
› Wire-Free internal technic
› Multiple circuit protections
(SWMINOS70)
7.4V
4500mAh
33.3Wh
Suits Sony NP-750
SKU | SWMINOS70 |
Brand | SWIT |
Shipping Weight | 0.4000kg |
Shipping Width | 0.100m |
Shipping Height | 0.050m |
Shipping Length | 0.100m |
Shipping Cubic | 0.000500000m3 |
