Key Features

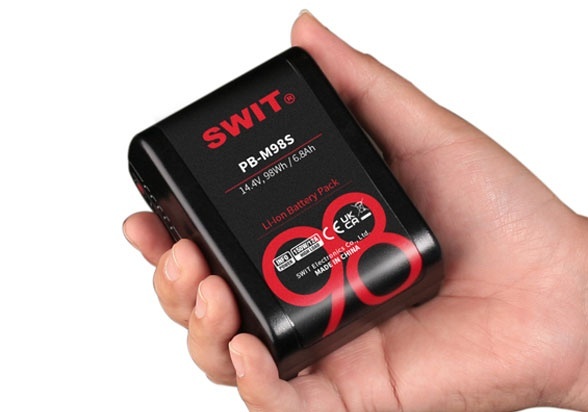

Tiny V-mount battery Pocket fit size: The brick size V-mount batteries are always too big and heavy for field shootings, especially the handheld stabi- lizers, focus puller monitor, portable LED panel, or small cameras.

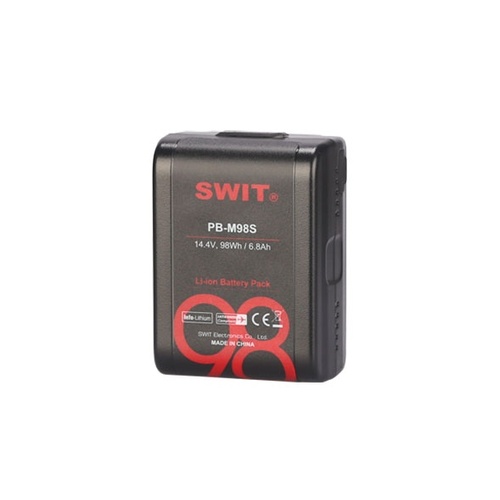

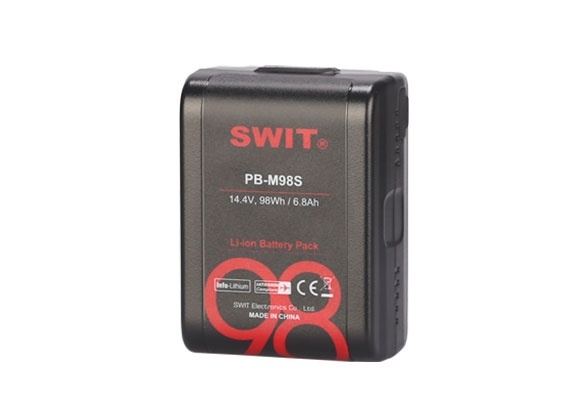

PB-M98S Pocket V-mount battery is designed for the above applications!
It’s only a DV battery size, with high capacity cells and still reaches 98Wh, and without any compromise on the DC sockets!
98Wh Fly Friendly, 150W/12A constant high load: PB-M98S consists of 8pcs of high class 18650 battery cells, nominal voltage is 14.4V and reaches 98Wh / 6.8Ah high capacity. You can take this battery in carry-on luggage to board airplane.
The constant load is as high as 150W, 12A, applicable for high power devices.

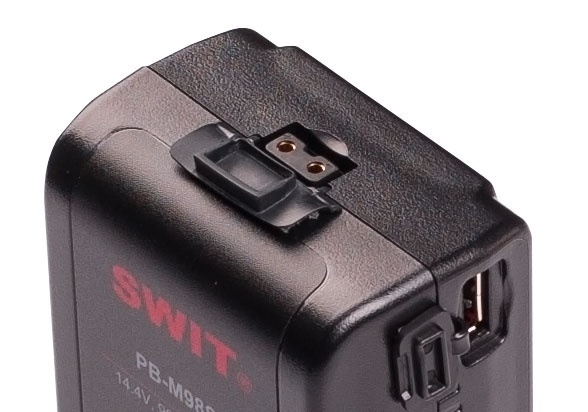

Built-in D-tap and USB: The pocket size PB-M98S still has D-tap and USB sockets built-in. The D-tap socket has 100W/8A load, and support charging input by SWIT PC-U130B2 dual D-tap charger.
The USB socket outputs 5V/2A for smart phone fast charging.
5-LED Power Indicator, Low battery warning: PB-M98S has 5-LEDs to indicator remaining power percentage. When remaining power is less than 10%, the last LED will flash automatically to remind changing battery.
3A Fast Charging: PB-M98S can be charged by all standard V-mount chargers and D-tap chargers. Max charging current is 3A.
The following chargers are recommended:
1. S-3822S, Portable 2-ch Simultaneous Charger
Charge 2x PB-M98S: Approx. 3 hours
2. PC-U130B2, Ultra-Portable Dual D-tap head charger
Charge 1x PB-M98S: Approx. 3 hours
Charge 2x PB-M98S: Approx. 5 hours and 15 minutes
Hot-Swap Adaptor: You can use 2x PB-M98S hot-swapable on cameras, by the Hot-swap Adaptor KA-M20S, to get a long time, uninterrupted power, and equivalent to a standard size V-mount battery.
Wire-Free Internal Tech: PB-M98S has innovative “Wire-Free” internal technic. All the cells, D-tap, USB, power indicator devices are directly soldered onto PCB, no connecting wires, to reduce internal resistance effectively, and make the circuit stable, safe, and reliable.
Specifications
› Tiny V-mount battery, Pocket fit
› 98Wh/6.8Ah fly-friendly capacity
› 150W/12A constant high load
› 1x D-tap output & charging input
› 1x USB 5V/2A output
› 5-step LED power indicator
› Power info for both SONY & RED
› Wire-Free internal technic
› Multiple circuit protections
(SWPBM98S)
7.4V
4500mAh
33.3Wh
Suits Sony NP-750
SKU | SWPBM98S |
Brand | SWIT |
Shipping Weight | 0.5500kg |
Shipping Width | 0.080m |
Shipping Height | 0.060m |
Shipping Length | 0.100m |
Shipping Cubic | 0.000480000m3 |
