Key Features

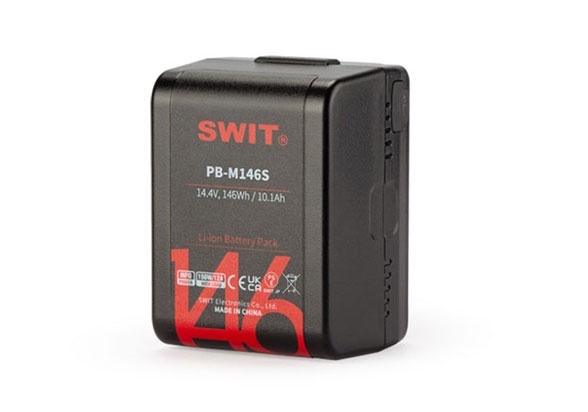

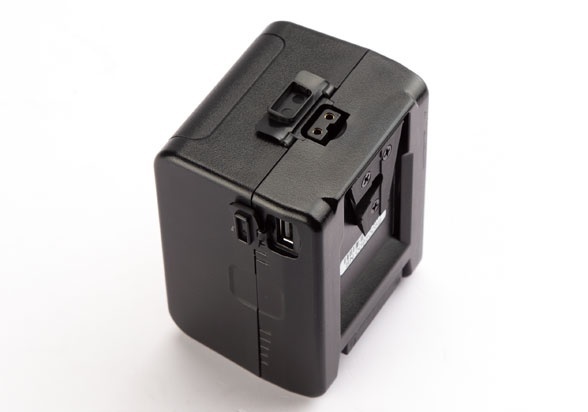

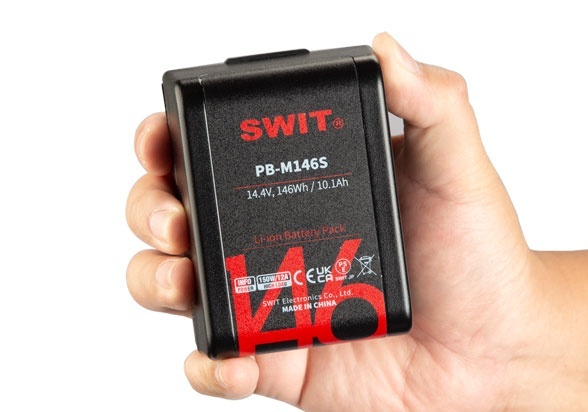

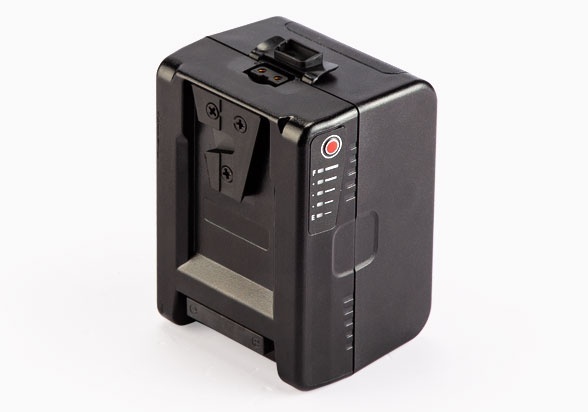

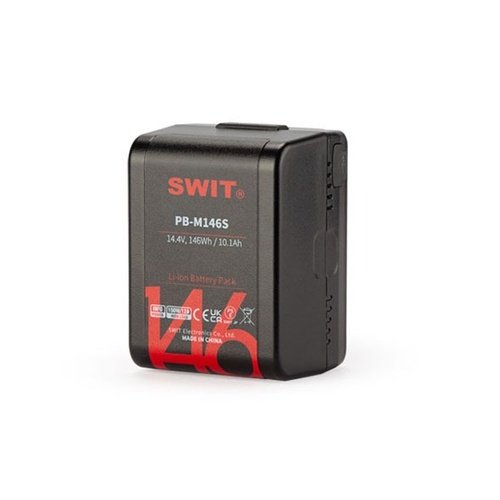

Pocket V-mount battery: As a new member of PB-M series Pocket V-mount batteries, the PB-M146S provides 146Wh larger capacity to extend run time, and still tiny size for convenient carrying.
146Wh, D-tap and USB: PB-M146S has 14.4V nominal voltage, 146Wh large capacity, and 5-step LED power indicator, built-in D-tap DC output & charging input, and USB-A 5V/2A power out.
The constant load is 150W, 12A.
Hot-Swap Adaptor: You can use 2x PB-M146S hot-swapable on cameras, by the Hot-swap Adaptor KA-M20S, to get one-by-one hot swap uninterrupted power, and equivalent to a standard size V-mount battery.
50W/3A Fast Charging: PB-M146S can be charged by all standard V-mount chargers and D-tap chargers.
The following chargers are recommended:
1. S-3822S, Portable 2-ch Simultaneous Charger
Charge 2x PB-M146S: Approx. 3hrs 45min
2. PC-U130B2, Ultra-Portable Dual D-tap head charger
Charge 1x PB-M146S: Approx. 3hrs 45min
Charge 2x PB-M146S: Approx. 6 hours
Family Models: The PB-M pocket V-mount series have 45Wh, 98Wh and 146Wh, with the same output sockets and the same bottom size but different thickness.
Wire-Free Internal Tech: PB-M146S has innovative “Wire-Free” internal technic. All the cells, D-tap, USB, power indicator devices are directly soldered onto PCB, no connecting wires, to reduce internal resistance effectively, and make the circuit stable, safe, and reliable.
Specifications
› Tiny V-mount battery, Pocket fit
› 146Wh/10.1Ah fly-friendly capacity
› 150W/12A constant high load
› 1x D-tap output & charging input
› 1x USB 5V/2A output
› 5-step LED power indicator
› Power info for both SONY & RED
› Wire-Free internal technic
› Multiple circuit protections
(SWPBM146S)
7.4V
4500mAh
33.3Wh
Suits Sony NP-750
SKU | SWPBM146S |
Brand | SWIT |
Shipping Weight | 0.7500kg |
Shipping Width | 0.080m |
Shipping Height | 0.070m |
Shipping Length | 0.150m |
Shipping Cubic | 0.000840000m3 |
