Go wireless with PavoTube II XR!
The LumenRadio CRMX function has been integrated into the previous PavoTube II X series, while all other outstanding features have been maintained, including ultra-wide CCT Range of 2700K to 12000K, G/M ± 100 and built-in batteries.
With its inclusion in the lighting arsenal, creators will be able to unleash their unlimited creative inspirations free of messy cables. CRMX was specifically developed to meet the demand for reliable, easy to use, and cost effective wireless lighting controls.
The new Pavotube II 15XR Tube lights will let your creativity run wild. The new model of LED tubes now encompass pixel control, giving creatives endless ways to light. Put a splash of colour onto a background, or light up your subject with a specific hue. The PavoTubes feature 0 to 100% dimming with a maximum illumination of 2850 lumens at 5600K, as well as a full spectrum RGB and pre-programmed special lighting effects. With the colour temperature adjustable from 2700K-12000K, a CRI of 98 and a TLCI of 95 this RGB LED tube exceeds most studio lighting needs.
It also features a choice of over 360 static light colours on the RGB spectrum and can cycle through the entire spectrum at a speed of your choice. Now with more advanced effect modes, the 15XR has 15 in built practical effects and with the new pixel feature adds another 10 pixel effects to enhance your lighting and creativity.

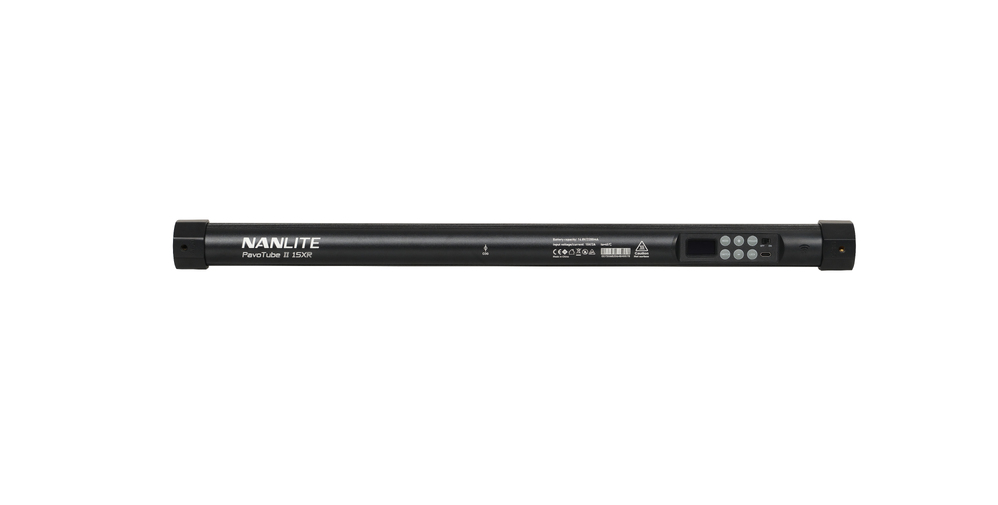

With easy-to-use dials and buttons built into the light tube, as well as built-in 2.4GHz radio control, this RGB tube light is versatile enough to fit right into your existing set up without needing a lot of extra preparation.
The housing has been upgraded to a robust metal housing, giving more confidence with your lighting. New and improved LED display and soft buttons make the unit much easier to use.
Supplied in a padded carrying case complete with all the accessories you need to get going, including mounting clips for adapting your light to a tripod or the wall.
The Pavotube has octagonal ends, allowing it to be placed on the floor or a surface at a specific angle to give you maximum control over the throw of the lighting.
Easily achieve beautiful results without adding plastic filters or gels. The PavoTube Tubes' easy-to-use dials and buttons enable you to dial temperature from warm to cold (2700K-12000K) or hue and saturation in RGB mode.
Power Anywhere
Perfect for use in the studio or on location, PavoTube RGBWW Tubes can run off either the included AC adapter or their internal Li-ion batteries for up to 2 hours at full brightness when no mains power is available.
Model: PavoTube II 15XR 1KIT
Dimensions: 43×600mm
Color Temperature: 2700K-12000K
CRI/TLCI: 98/95
Weight: 0.96kg/2.12lb
Dimming: 0 to 100 % continuous
Control: WS-RC-C2 Remote, Wifi App control direct to unit
Power Supply: DC15V/2A,100-240V AC
Battery: Built in Rechargeable Li-Ion - 14.8V/2200mA Li-Ion
Run Time: 1 Hour 26 Minutes at 100% Brightness
Charge Time to Full: 3 Hours
Brightness:
PavoTube II 15XR Illumination(lux/fc) |
|||
Distance |
1M |
2M |
3M |
2700K |
343lux/32fc |
86lux/8fc |
38lux/4fc |
3200K |
350lux/33fc |
87lux/8fc |
39lux/4fc |
4300K |
360lux/33fc |
90lux/8fc |
40lux/4fc |
5600K |
377lux/35fc |
94lux/9fc |
42lux/4fc |
6500K |
386lux/36fc |
97lux/9fc |
43lux/4fc |
7500K |
385lux/36fc |
96lux/9fc |
43lux/4fc |
10000K |
359lux/33fc |
90lux/8fc |
40lux/4fc |

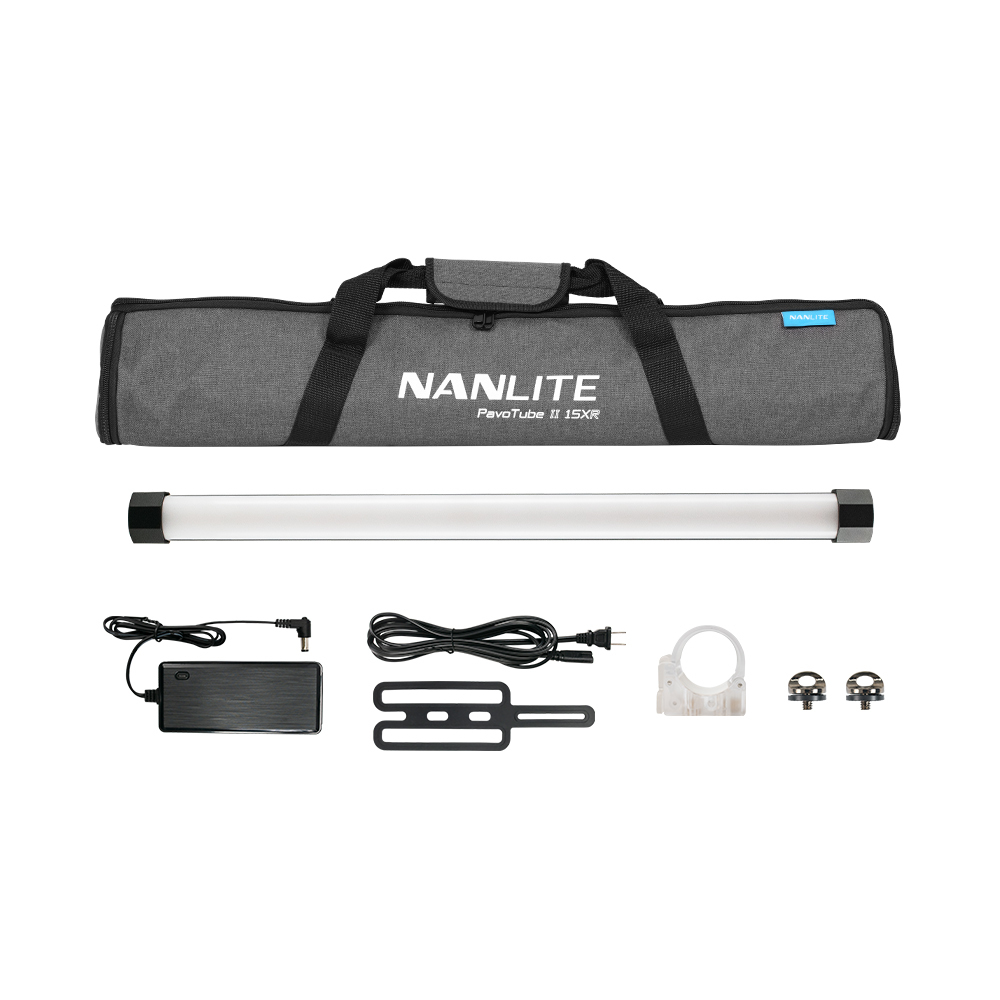

PavoTube II 15XR×1

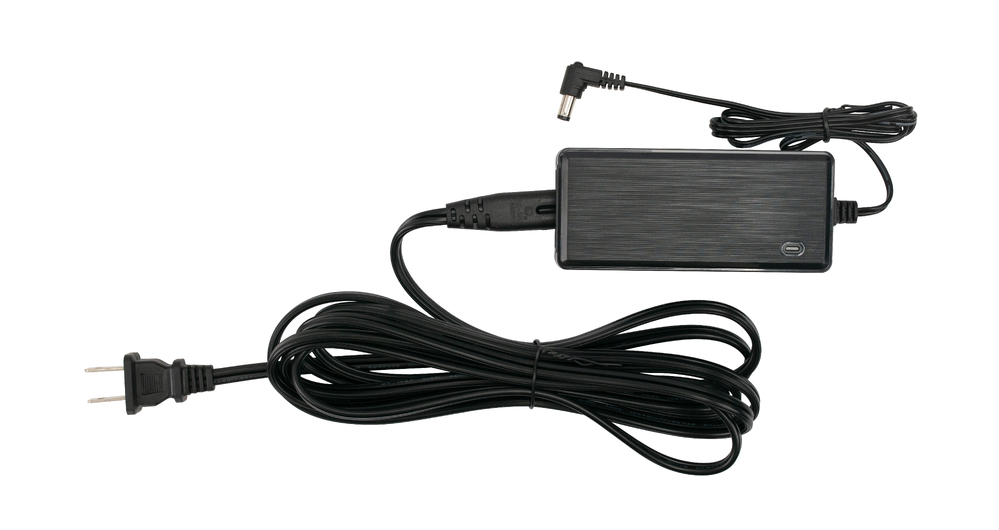

15V/2A Power Adapter×1
Power Adapter Rubber Strap ×1
Power Cable 3M×1
Clip×1
Eyebolt×2
Carrying Bag×1
User Manual×1
USB Drive×1
PavoTube II Technical Data |
|||
---|---|---|---|
Model |
PavoTube II 15X/PavoTube II 15XR |
PavoTube II 30X/PavoTube II 30XR |
PavoTube II 60X/PavoTube II 60XR |
Rated Power |
35W |
70W |
106W |
Input Voltage/Current |
DC 15V / 2A MaxAC 100-240V 50/60Hz |
DC 15V / 4A MaxAC 100-240V 50 / 60Hz |
DC 15V / 6.5A MaxAC 100-240V 50 / 60Hz |
CRI |
Average 97 |
||
TLCI |
Average 98 |
||
TM-30 Rf |
Average 94 |
||
TM-30 Rg |
Average 101 |
||
SSI (3200K) |
85 |
||
SSI (5600K) |
75 |
||
CCT |
2700K-12000K (G/M) |
||
Dimming |
0-100% |
||
IP Rating |
IP54 |
||
Control |
On-board, Remote Controller, NANLINK APP, DMX/RDM,LumenRadio CRMX (*Only available for PavoTube II 15XR/30XR/60XR) |
||
Effect |
HUE Loop, CCT Loop, INT Loop, Flash, Pulse, Storm, Police Car, TV,Paparazzi, Candle/Fire, Disco, Bad Bulb, Firework, Explosion and Welding |
||
Pixel Effect |
HUE Loop, CCT Loop, INT Loop, Multi-color, Fade, Scroll, Rainbow,*Process, *Fire, *Driving (*Only APP Control) |
||
Product Size |
Light Fixture:φ43 × 600mm / φ1.69 × 23.6" |
Light Fixture:φ43 × 1145mm / φ1.69 × 45.07" |
Light Fixture:φ43 × 2220mm / φ1.69 × 87.4" |
Product Weight |
Light Fixture: 0.82kg / 1.81lb15V/2A Power Adapter: 0.2kg / 0.44lbPower Cable 3M: 0.05kg / 0.11lb |
Light Fixture: 1.58kg / 3.48lb15V/4A Power Adapter: 0.2kg / 0.44lbPower Cable 3M: 0.05kg / 0.11lb |
Light Fixture: 2.9kg / 6.39lb15/6.5A Power Adapter: 0.55kg / 1.21lbPower Cable 3M: 0.05kg / 0.11lb |
Certifications |
RoHS, FCC, CE, UKCA, PSE |
RoHS, FCC, CE, UKCA, PSE |
RoHS, CE, UKCA, PSE |
Illumination (lux / fc) |
|||
PavoTube II 15X/PavoTube II 15XR |
|||
Distance |
1M |
2M |
3M |
2700K |
343lux/32fc |
86lux/8fc |
38lux/4fc |
3200K |
350lux/33fc |
87lux/8fc |
39lux/4fc |
5600K |
377lux/35fc |
94lux/9fc |
42lux/4fc |
6500K |
386lux/36fc |
97lux/9fc |
43lux/4fc |
R |
150 lux / 14 fc |
39 lux / 4 fc |
17 lux / 2 fc |
G |
308 lux / 29 fc |
77 lux / 7 fc |
34 lux / 3 fc |
B |
63 lux / 6 fc |
15 lux / 1 fc |
7 lux / 1 fc |
PavoTube II 30X/PavoTube II 30XR |
|||
Distance |
1M |
2M |
3M |
2700K |
686 lux / 64 fc |
174 lux / 16 fc |
78 lux / 7 fc |
3200K |
688 lux / 64 fc |
175 lux / 16 fc |
78 lux / 7 fc |
5600K |
746 lux / 69 fc |
189 lux / 18 fc |
84 lux / 8 fc |
6500K |
770 lux / 72 fc |
194 lux / 18 fc |
87 lux / 8 fc |
R |
272 lux / 25 fc |
69 lux / 6 fc |
30 lux / 3 fc |
G |
586 lux / 54 fc |
144 lux / 13 fc |
64 lux / 6 fc |
B |
123 lux / 11 fc |
31 lux / 3 fc |
14 lux / 1 fc |
PavoTube II 60X/PavoTube II 60XR |
|||
Distance |
1M |
2M |
3M |
2700K |
900 lux / 84 fc |
336 lux / 31 fc |
180 lux / 17 fc |
3200K |
928 lux / 86 fc |
345 lux / 32 fc |
184 lux / 17 fc |
5600K |
991 lux / 92 fc |
369 lux / 34 fc |
194 lux / 18 fc |
6500K |
1024 lux / 95 fc |
380 lux / 35 fc |
201 lux / 19 fc |
R |
332 lux / 31fc |
131 lux / 12 fc |
68 lux / 6 fc |
G |
783 lux / 73 fc |
295 lux / 27 fc |
153 lux / 14 fc |
B |
143 lux / 13 fc |
55 lux / 5 fc |
28 lux / 3 fc |
(NNPAV15XR1KIT)
SKU | NNPAV15XR1KIT |
Barcode # | 6949987425991 |
Brand | Nanlite |
Shipping Weight | 1.8000kg |
Shipping Width | 0.160m |
Shipping Height | 0.160m |
Shipping Length | 0.900m |
Shipping Cubic | 0.023040000m3 |
Assembled Length | 1.170m |
Assembled Height | 0.480m |
Assembled Width | 0.480m |
