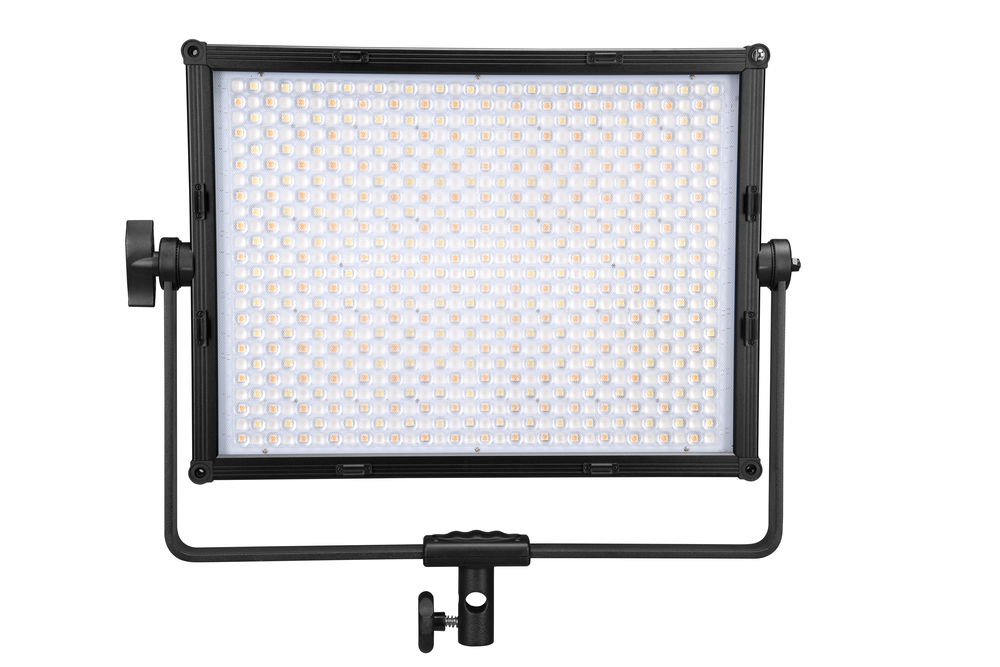

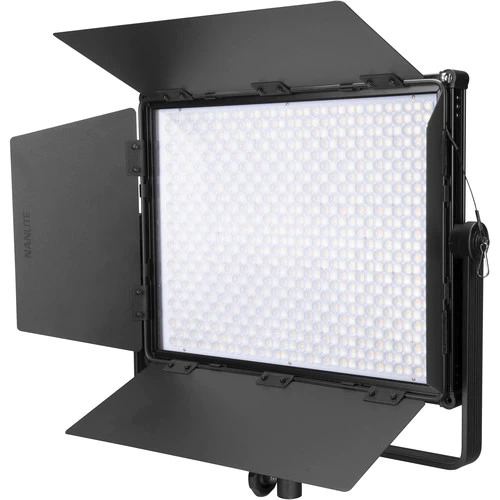

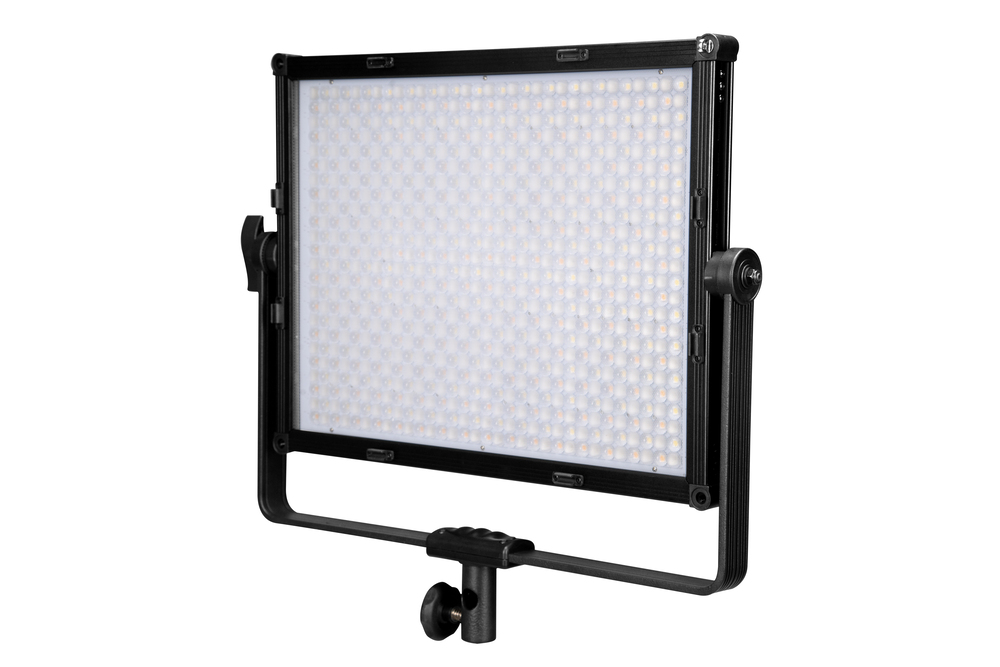

Nanlite MixPanels are capable of switching between a "traditional" multi-LED panel for hard light, a diffused SMD LED panel for soft light, and a tuneable RGB panel for colourful, creative effects at the push of a button. Now, whether the project calls for hard lighting with more throw, diffused lighting for flattering portraits and up-close work, or coloured light to set moods and express emotions, creators can do it all in one unit with no additional accessories.
When using the hard light fixture in normal mode, the MixPanel 150 emits 11,320 Lux@1m 5600K. When shifted into boost mode, the output climbs even higher to 14,950 Lux at 1m on the 150. Plus, with dimming from 100% down to 1%, the MixPanel quickly adapts to any scene without adding ND filters or diffusion.
The brightness of a light is important, but without colour accuracy, a ton of time and money will be lost in post-production. Both MixPanels feature a CRI of 98, a TLCI of 95 plus Green/Magenta adjustment in CCT mode, allowing creators to shoot with confidence knowing the colour reproduction will be precise.

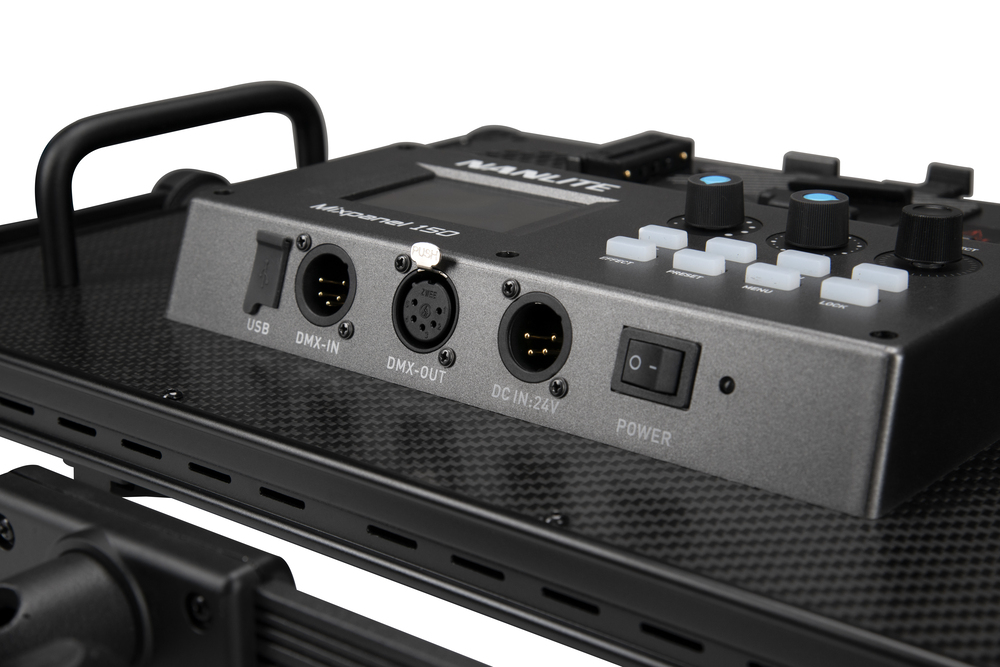

If there is one thing an RGBWW LED panel cannot be, it's cumbersome to use on set. The MixPanel's operating system has been developed from the ground up to be efficient and intuitive to use. The ability to save settings as presets makes your lighting consistent and repeatable.
The MixPanel's gel emulation mode provides a selection of 43 gel presets in two light sources (3200K & 5600K) encompassing 5x CTOx 5x CTB, and 33x Calcolor. 9 pre-programmed and adjustable special effects make it possible to imitate lighting scenarios that can otherwise be tricky to recreate such as hue loop, CCT loop, flash, pulse, storm, siren, TV, paparazzi, and candle/fire.

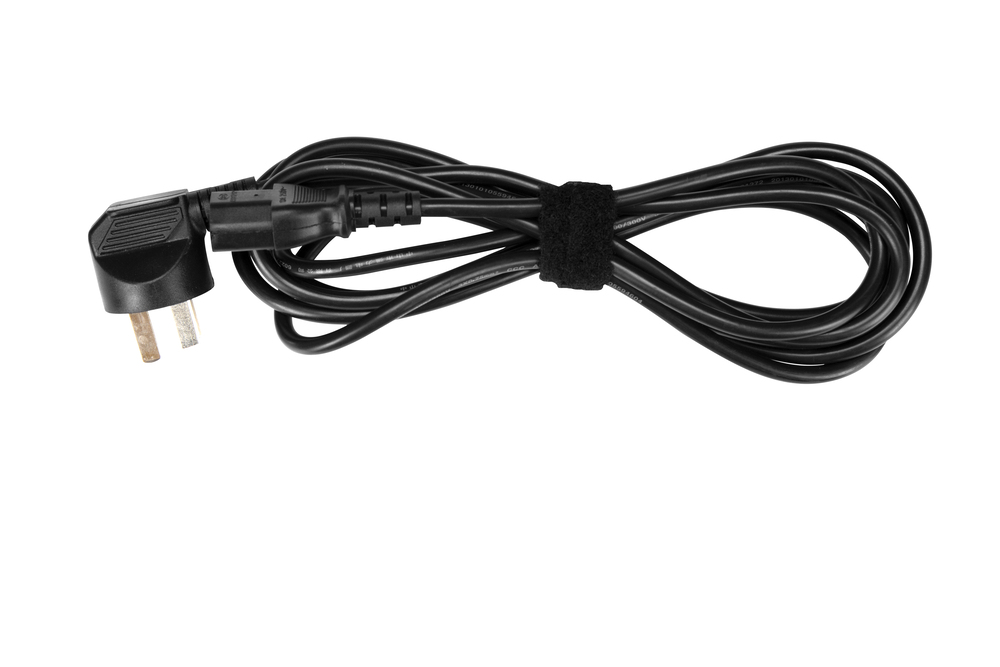

Optimized for use in the studio or on location, MixPanels can run off either the included AC adapter, 14.8V V-mounts with the Mixpanel 14.8V to 26V V-Mount adaptor (available separately) or the new high powered 26V V-Mount battery (available separately), so you can operate in any location regardless of power availability.

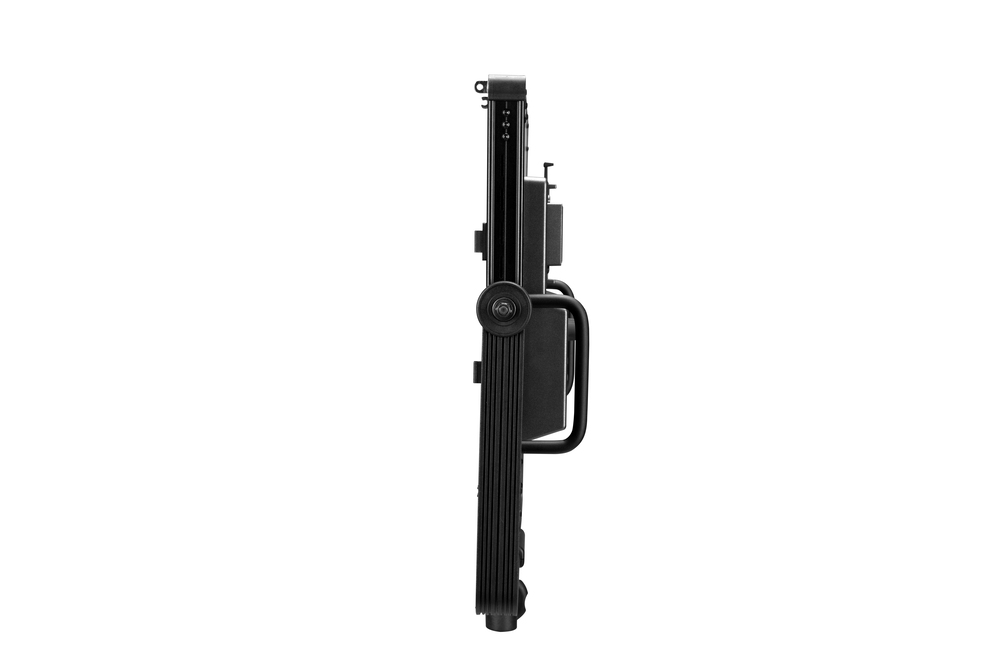

SIZE L/W/H: 482 X 82 X 415 mm
WEIGHT: 4.1kg
COLOR TEMP: 2700-7500K
CRI: 98
TLCI: 95
DIMMING: 0-100%
LUMEN OUTPUT 7500K: 12144 LUMEN
LUX @ 1M 5600K BOOST & SOFT LIGHT MODE: 2200 LUX
LUX @ 1M 5600K BOOST & HARD LIGHT MODE: 14950 LUX
LUX @ 1M 3200K BOOST & SOFT LIGHT MODE: 1941 LUX
LUX @ 1M 3200K BOOST & HARD LIGHT MODE: 15040 LUX

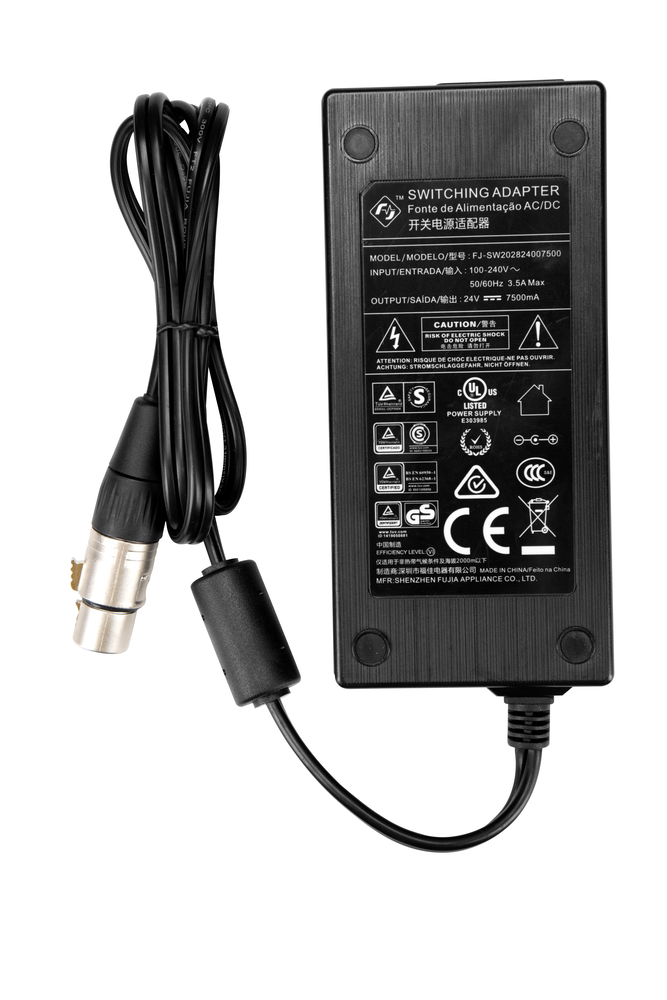

POWER SOURCE: DC24V/7.5A Mains power adaptor
Max Power Draw: 150w

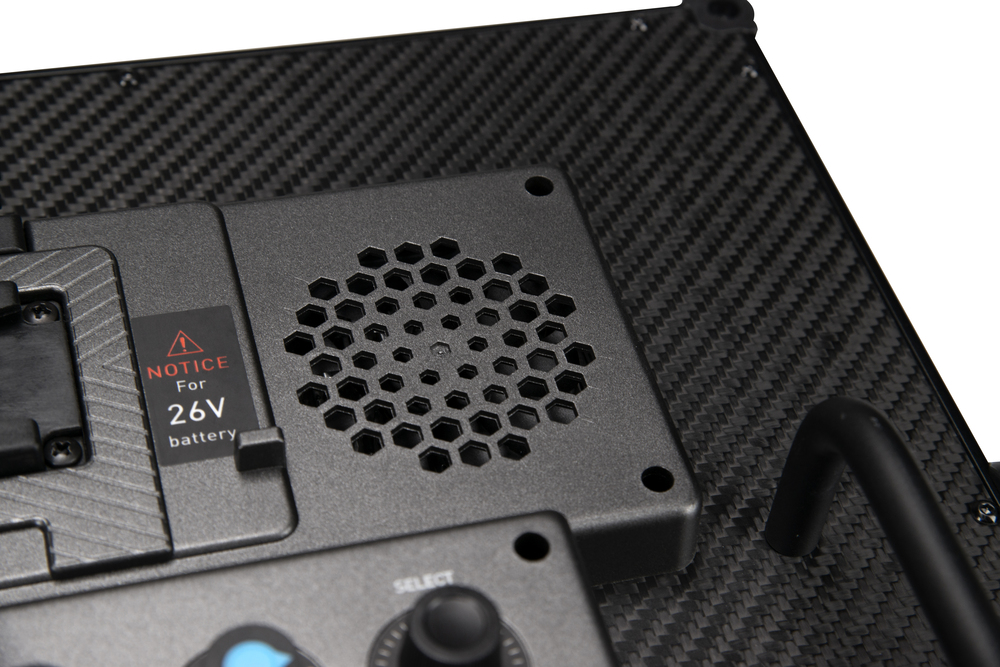

Battery: Sony V-Mount 26V Battery (Not Included)
Battery Run Time at 100% Brightness (approx): 1.3hours (26V Sony V-Mount 230wh)
Mount: Standard 5/8" Receiver
Gel Emulation:43 gel presets in two light sources (3200K & 5600K) encompassing 5x CTOx 5x CTB, and 33x Calcolor
Special Effects: hue loop, CCT loop, flash, pulse, storm, siren, TV screen, paparazzi, and candle/fire.
Green/Magenta Trim Adjustment: Yes, in CCT Mode
(NNMIXPANEL150)
SKU | NNMIXPANEL150 |
Barcode # | 6949987420378 |
Brand | Nanlite |
Shipping Weight | 7.9000kg |
Shipping Width | 0.170m |
Shipping Height | 0.530m |
Shipping Length | 0.610m |
Shipping Cubic | 0.054961000m3 |
Assembled Length | 0.482m |
Assembled Height | 0.410m |
Assembled Width | 0.080m |
