Creative Colour

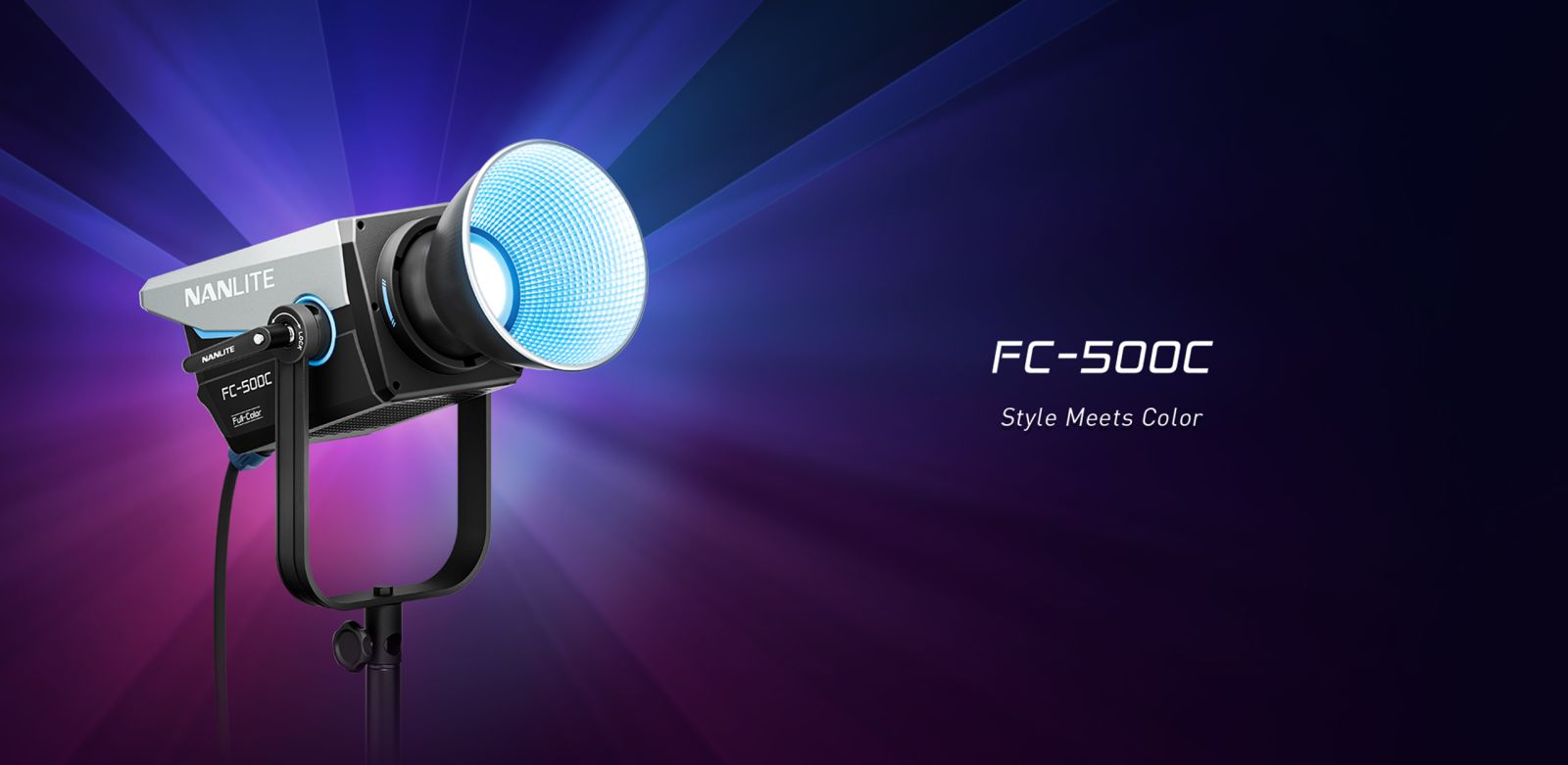

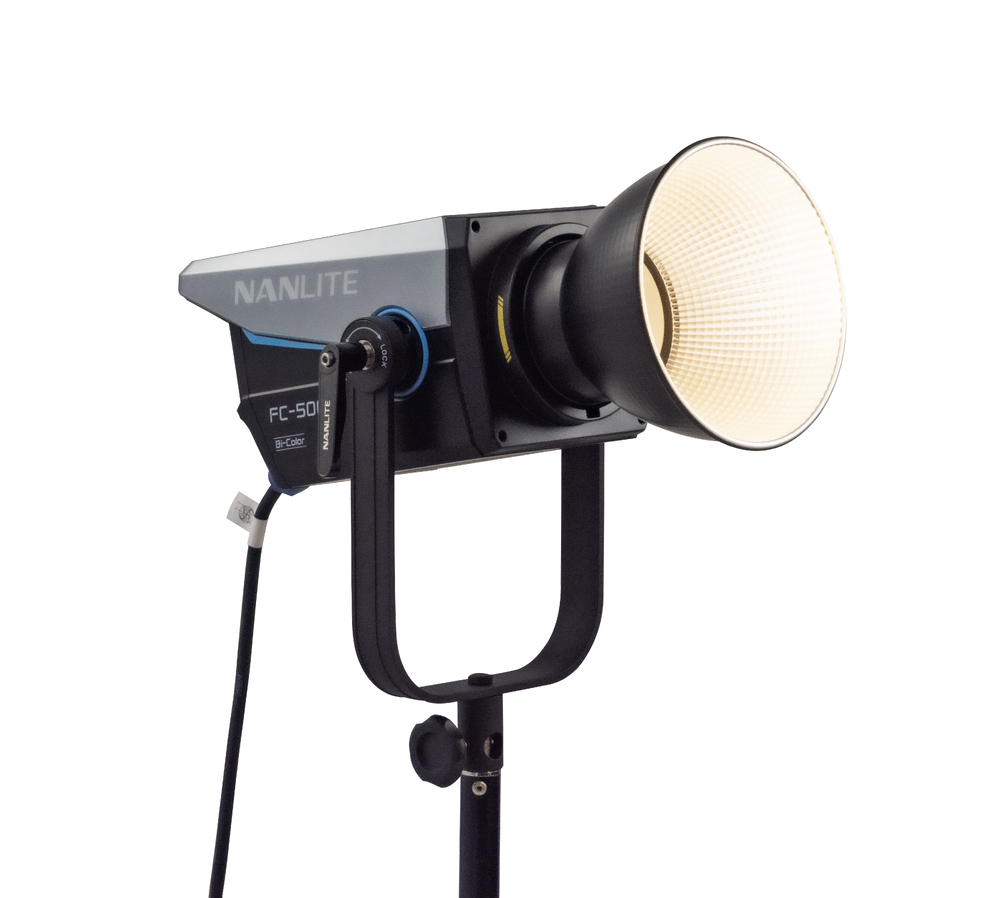

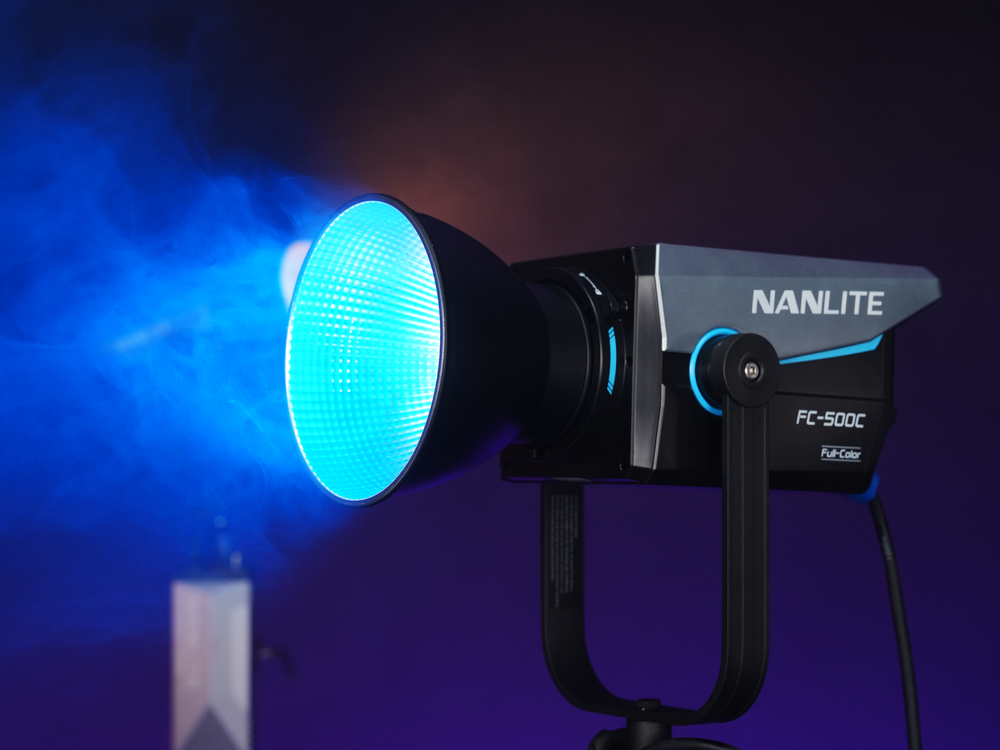

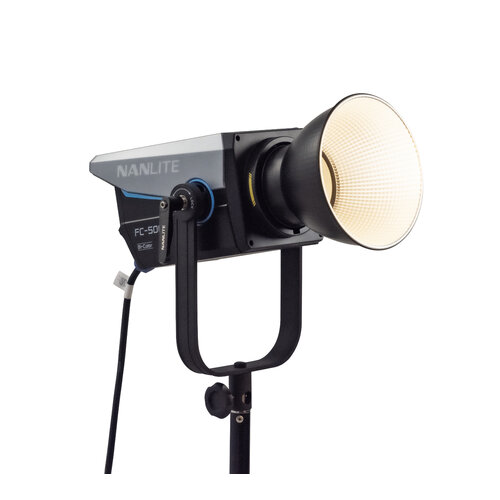

The Nanlite FC-500C is an RGBW LED spotlight that provides a significant amount of light output in 36,000 colors and a wide CCT range of 2700K-7500K. A power supply is included to run on a standard AC outlet, and the separately available FC PowerController allows you to operate the light from V-Mount batteries in the field. FC-500C has easy-to-use onboard controls, Bluetooth control via the free NANLINK app for iOS and Android, 2.4G for more wireless control options, and a locking, metal DMX/RDM port for advanced control.

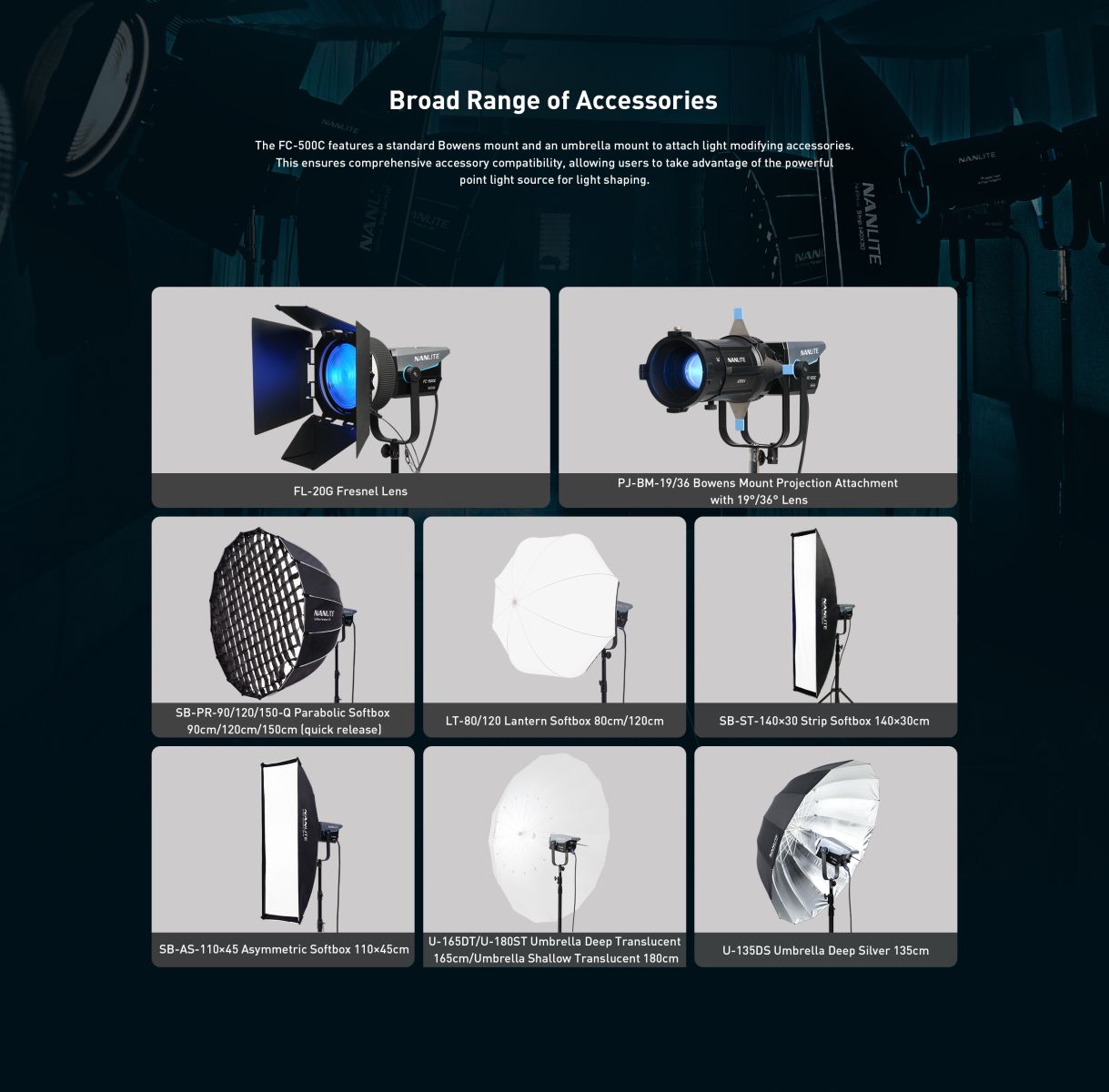

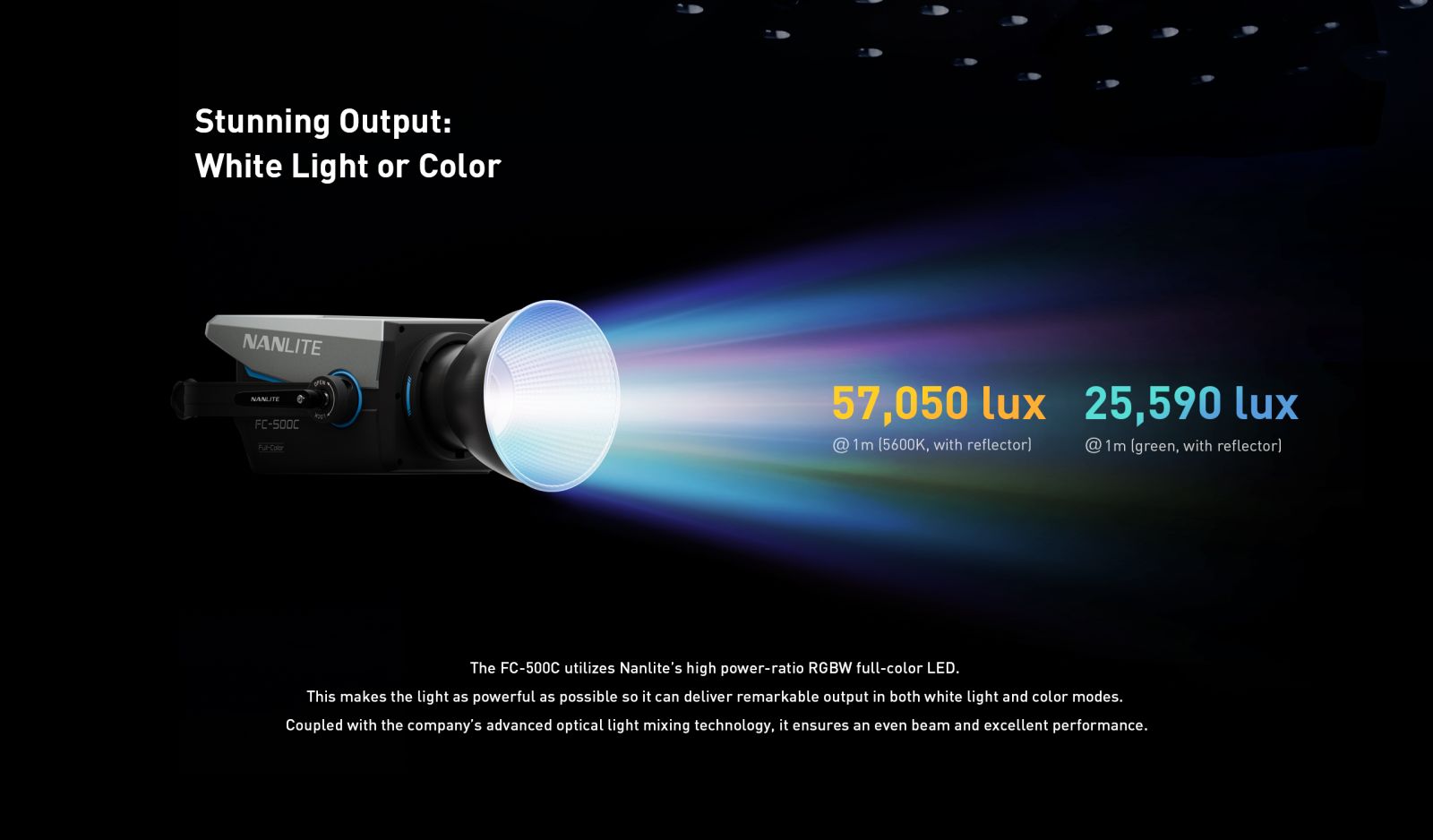

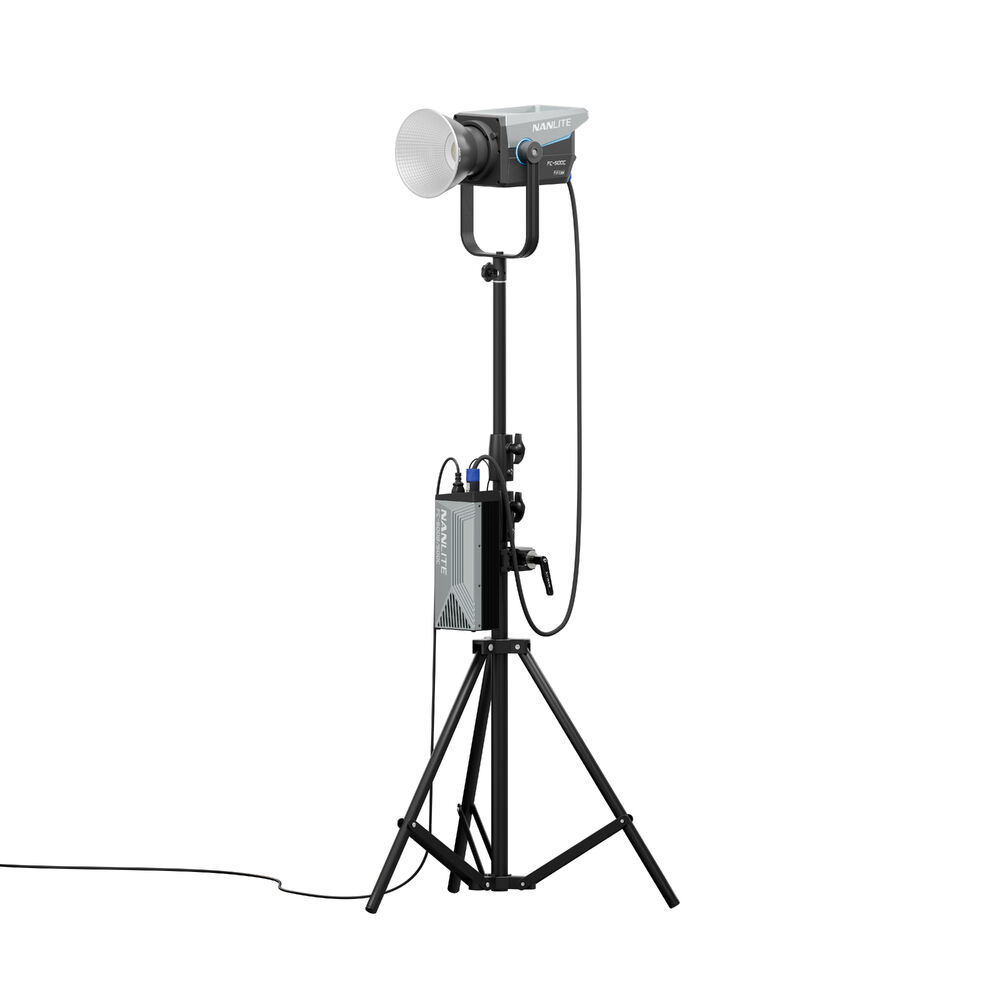

The FC-500C produces 57050 lux (5300 fc) at 1-metre with the included reflector. You can easily adjust the dimming from 0 to 100% in 0.1% increments, and the high SSI ratings of 84 (3200K) and 71 (5600K), and CRI of 95 and TLCI of 94 ensure your colors will always be accurate. It has green-to-magenta adjustment of +/- 150 to seamlessly blend with other lights. The included power supply has a strap to hang on a light stand, and a quick-release plate is provided for using the separately available ASCPQRFZ clamp. A wide range of light modifiers are compatible with its standard Bowens Mount, and an integrated umbrella mount provides more light-shaping options. The FC-500C is powerful, colorful, versatile, accurate, easy to use, and always ready to travel in the included hard-foam case.

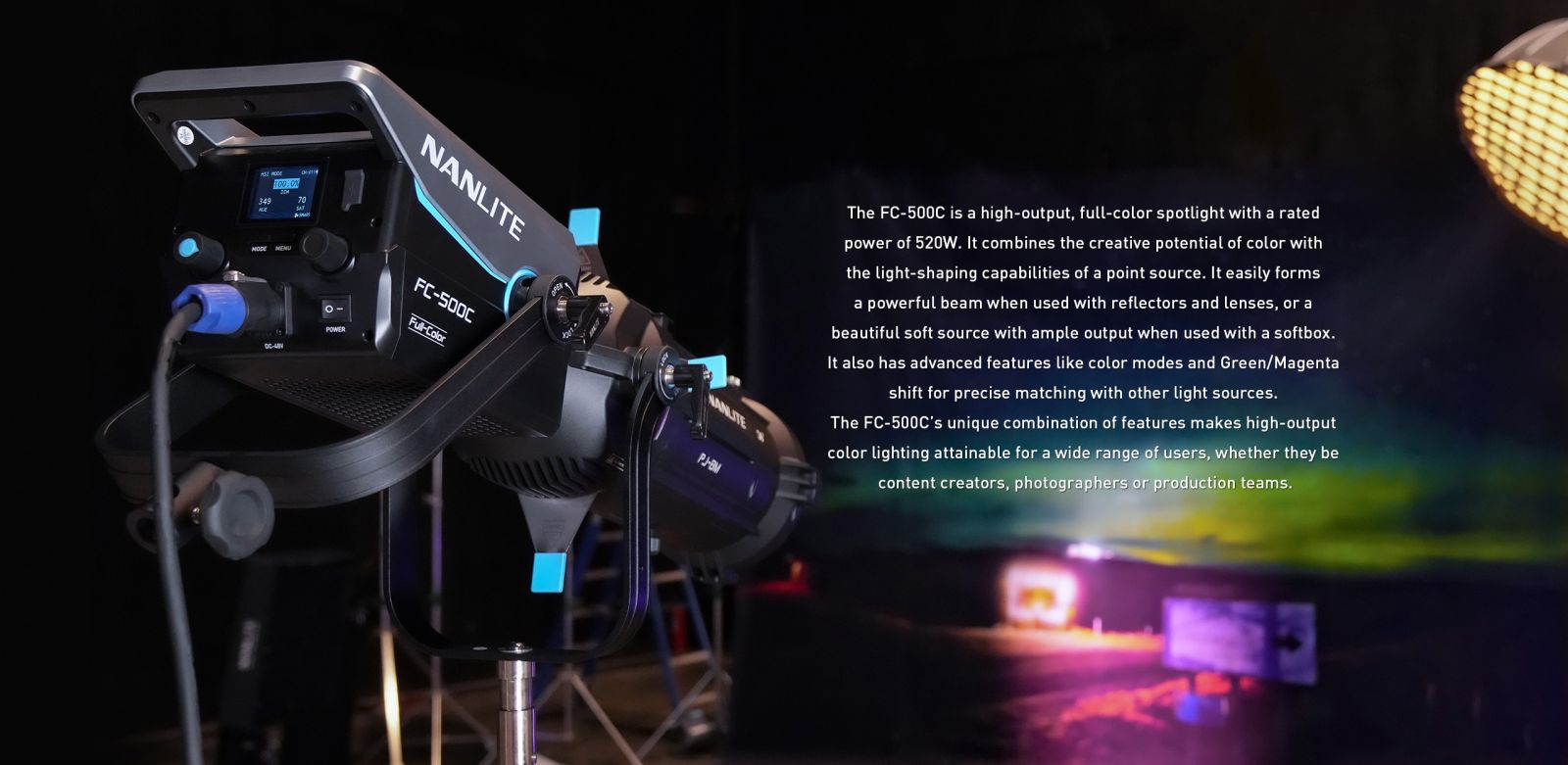

500 WATTS OF COLOR

The FC-500C is the brightest Nanlite light with RGB color. Either used solo, or with other Nanlite lights, or with light shaping tools such as the PJ-BM Projection Attachment (sold separately) for making textures and sculpting light, the FC-500C opens up new creative options.

TRAVEL CASE

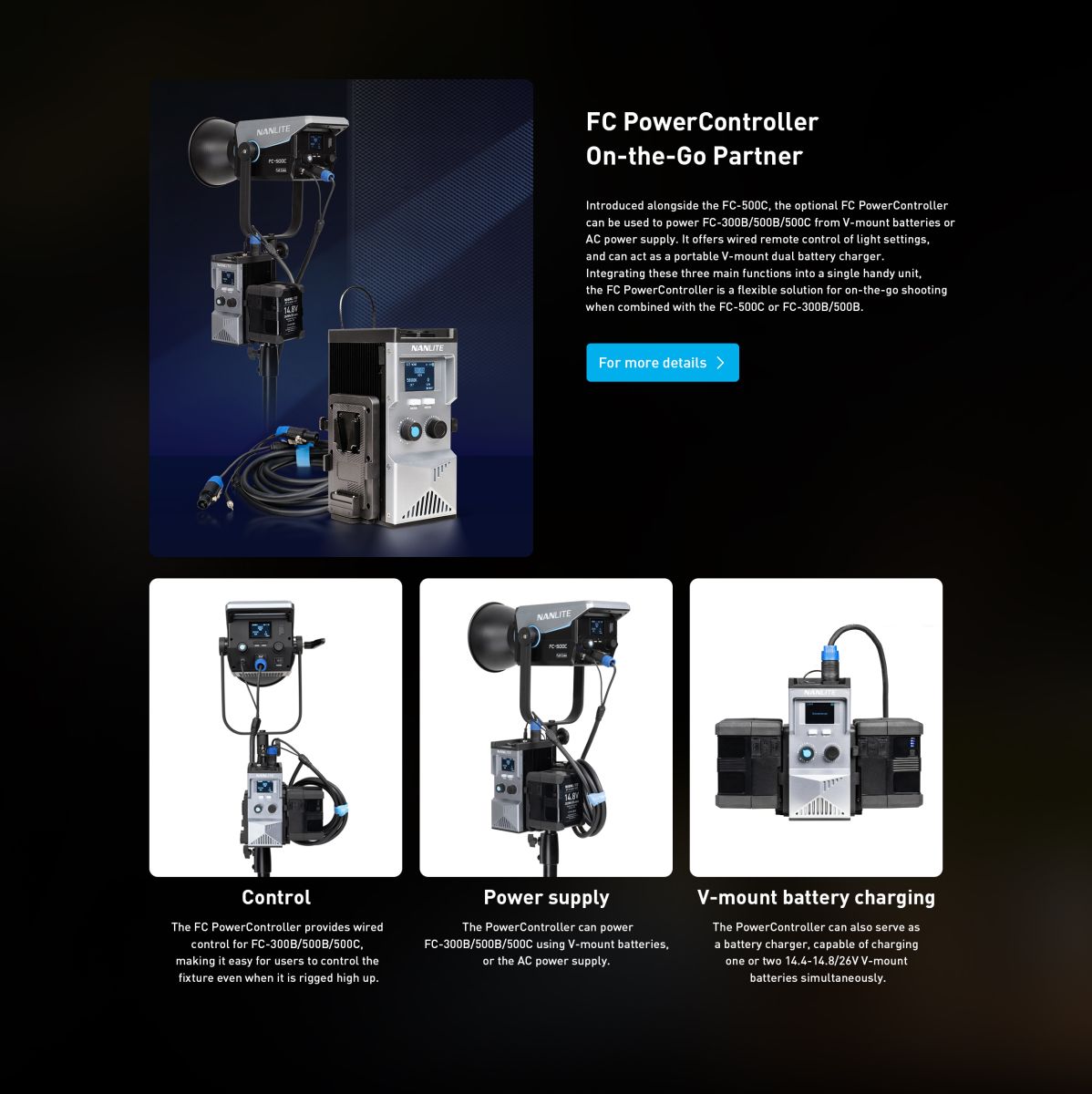

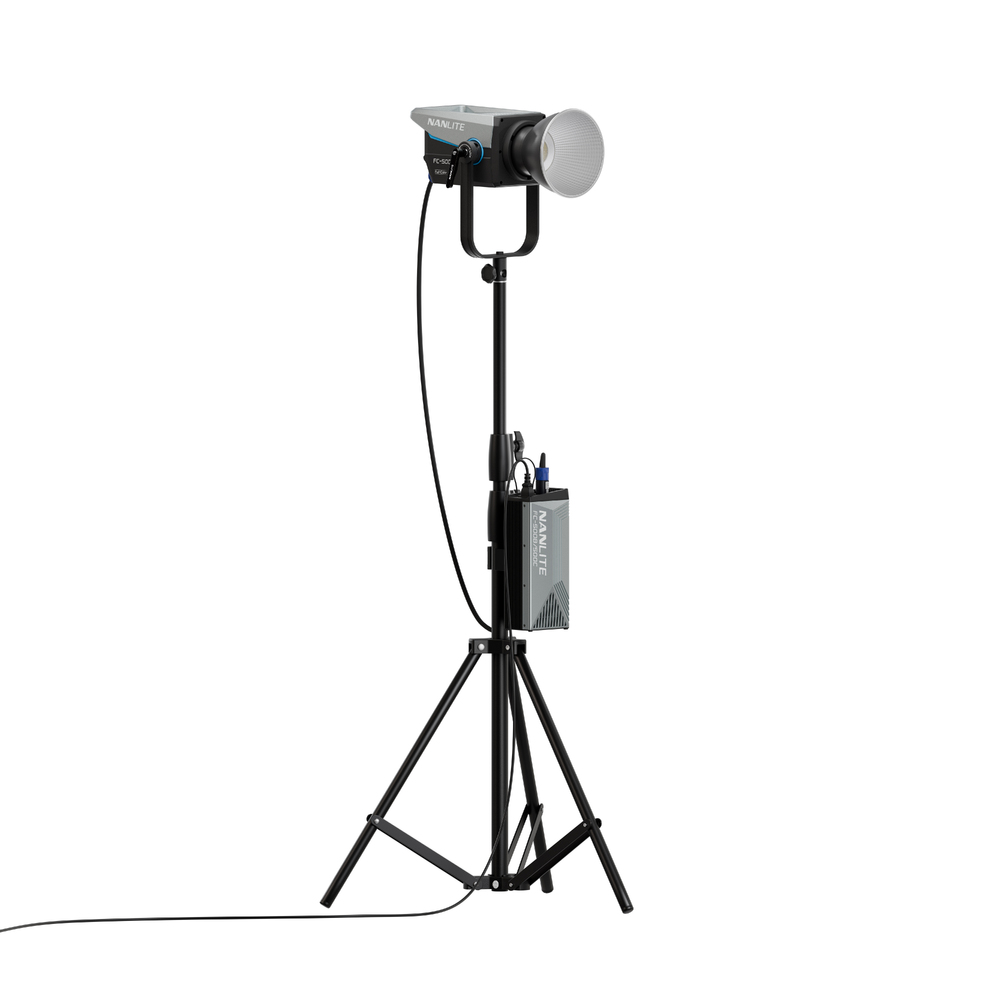

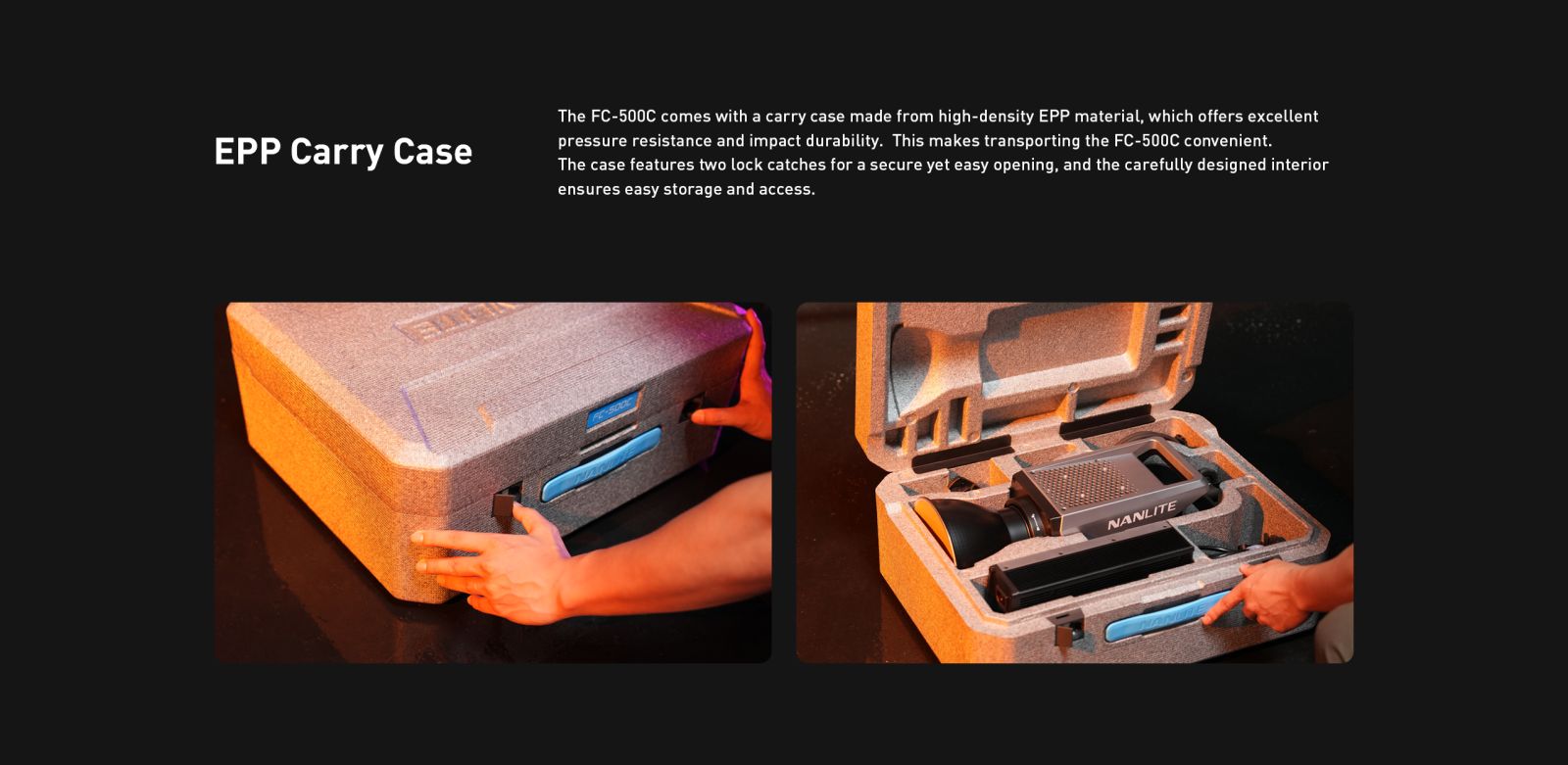

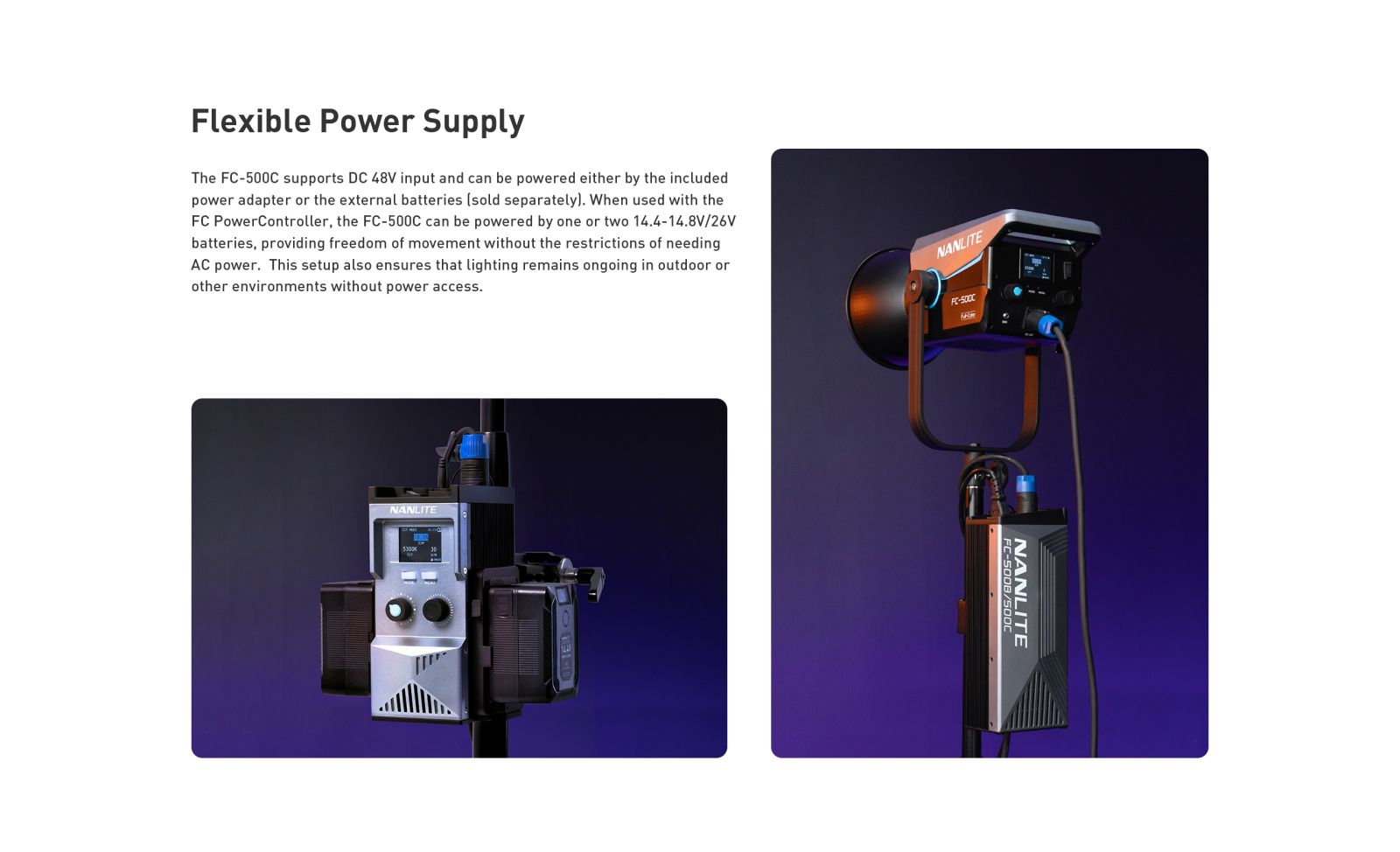

A crushproof, shockproof, carry case is included, so you can safely travel and store the FC-500C when not in use. The FC-500C is mains-powered but you can also use V-Mount batteries for on location shoots using the separately available FC PowerController.

ACCURATE COLOUR

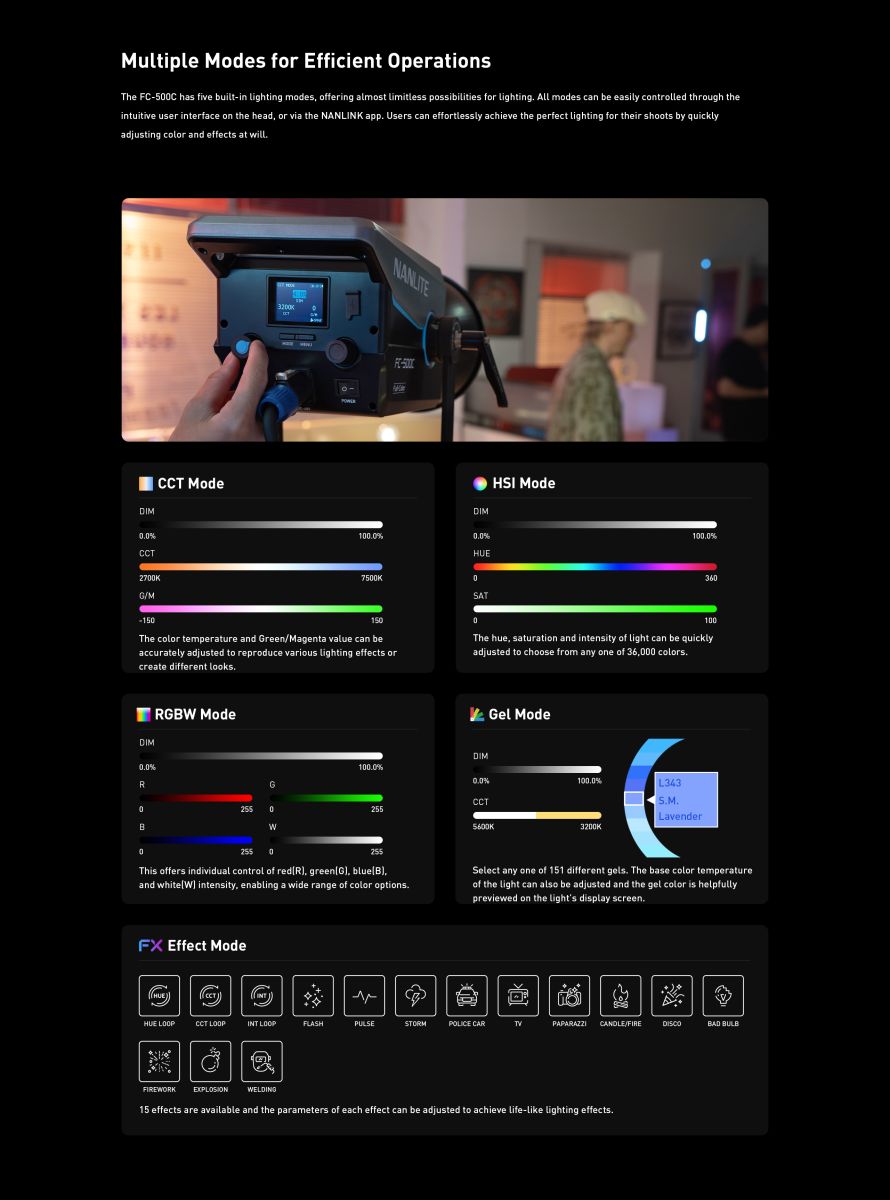

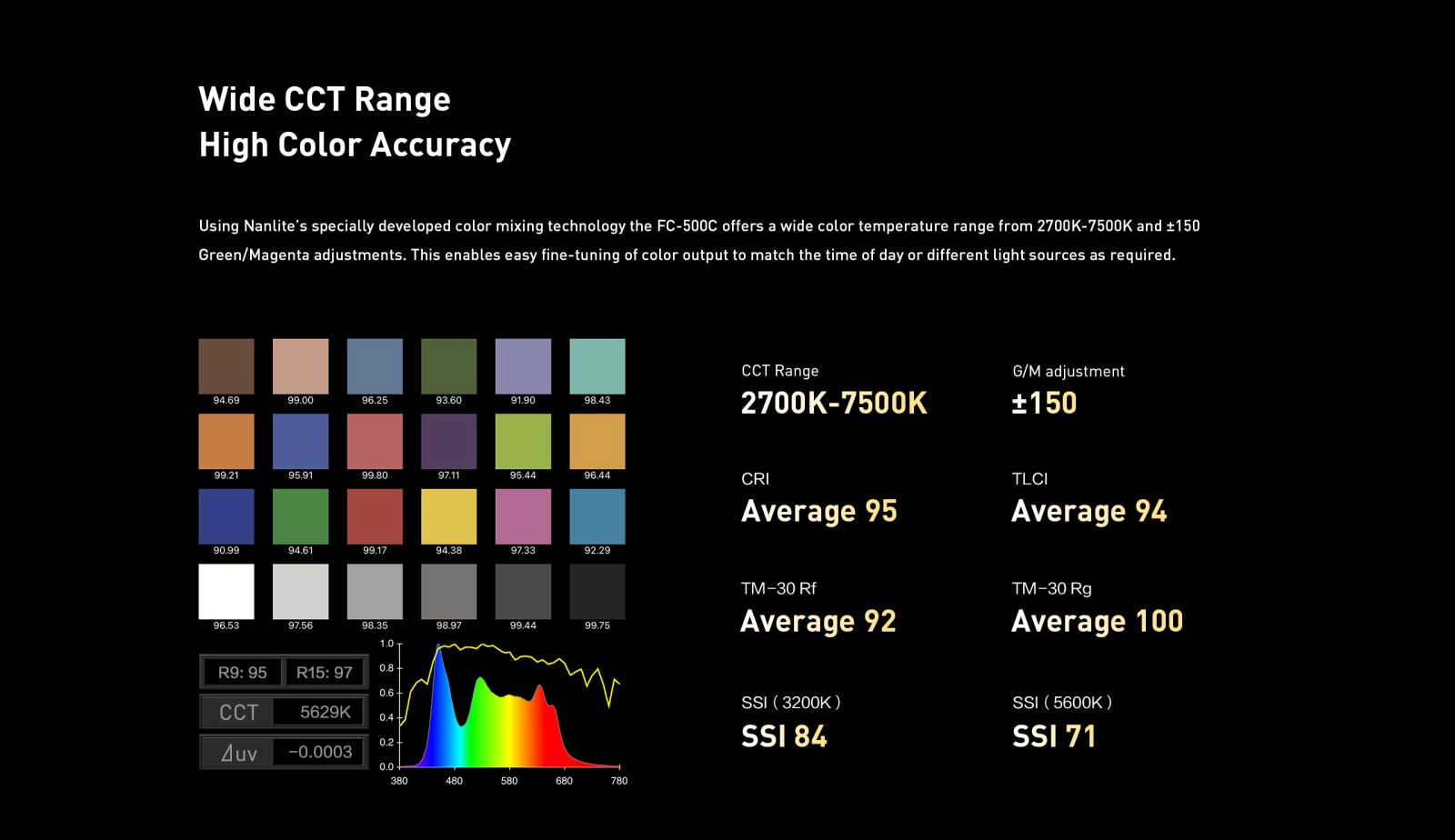

The color LEDS on FC-500C make more features possible, like 151 gel presets, HSI Mode, and RGBW Mode where you control red, green, blue, and white separately. You can have confidence in the colour accuracy of the FC-500C with SSI ratings of 84 (3200K) and 71 (5600K), CRI of 95 and TLCI of 94, and TM-30 of Rf Average 92 and Rg Average 100.

EASE OF USE

With a 2-inch screen and easy-to-master controls, the FC-500C helps you create professional-looking results quickly. Pressing the right knob jumps between popular color temperatures or hues, and pressing the left knob instantly drops outut to 0.0% and pressing again brings you back to your previous brightness setting. Bluetooth lets you control the FC-500C with your phone or tablet.

ADVANCED DETAILS

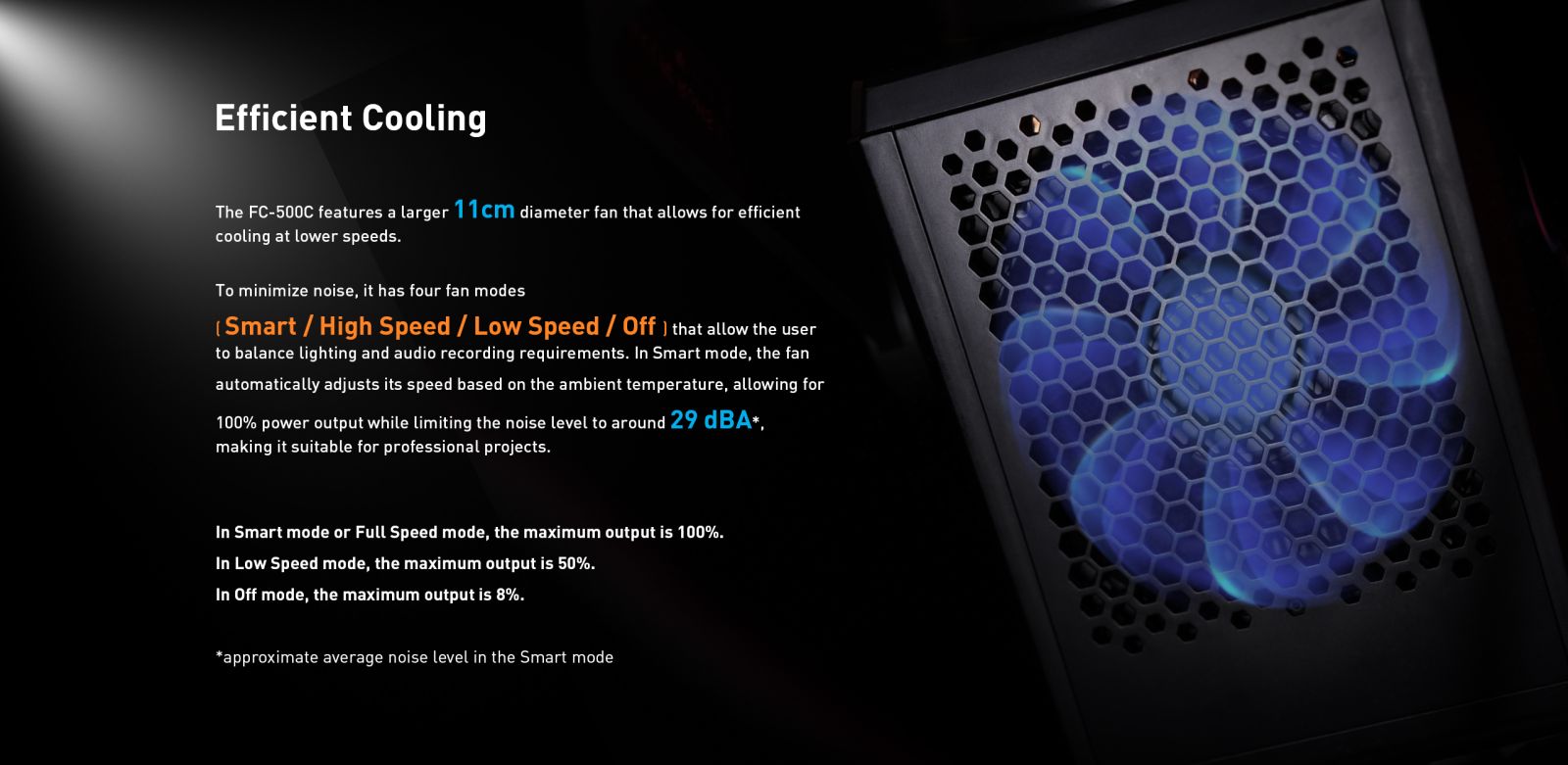

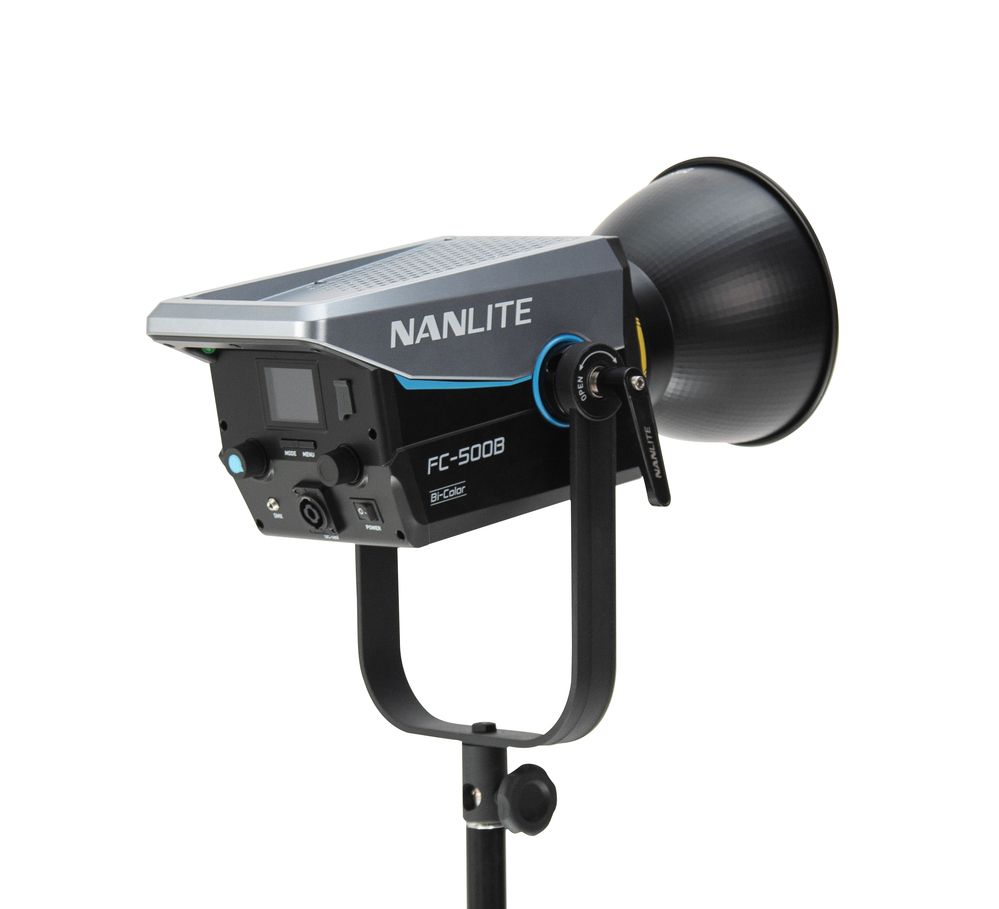

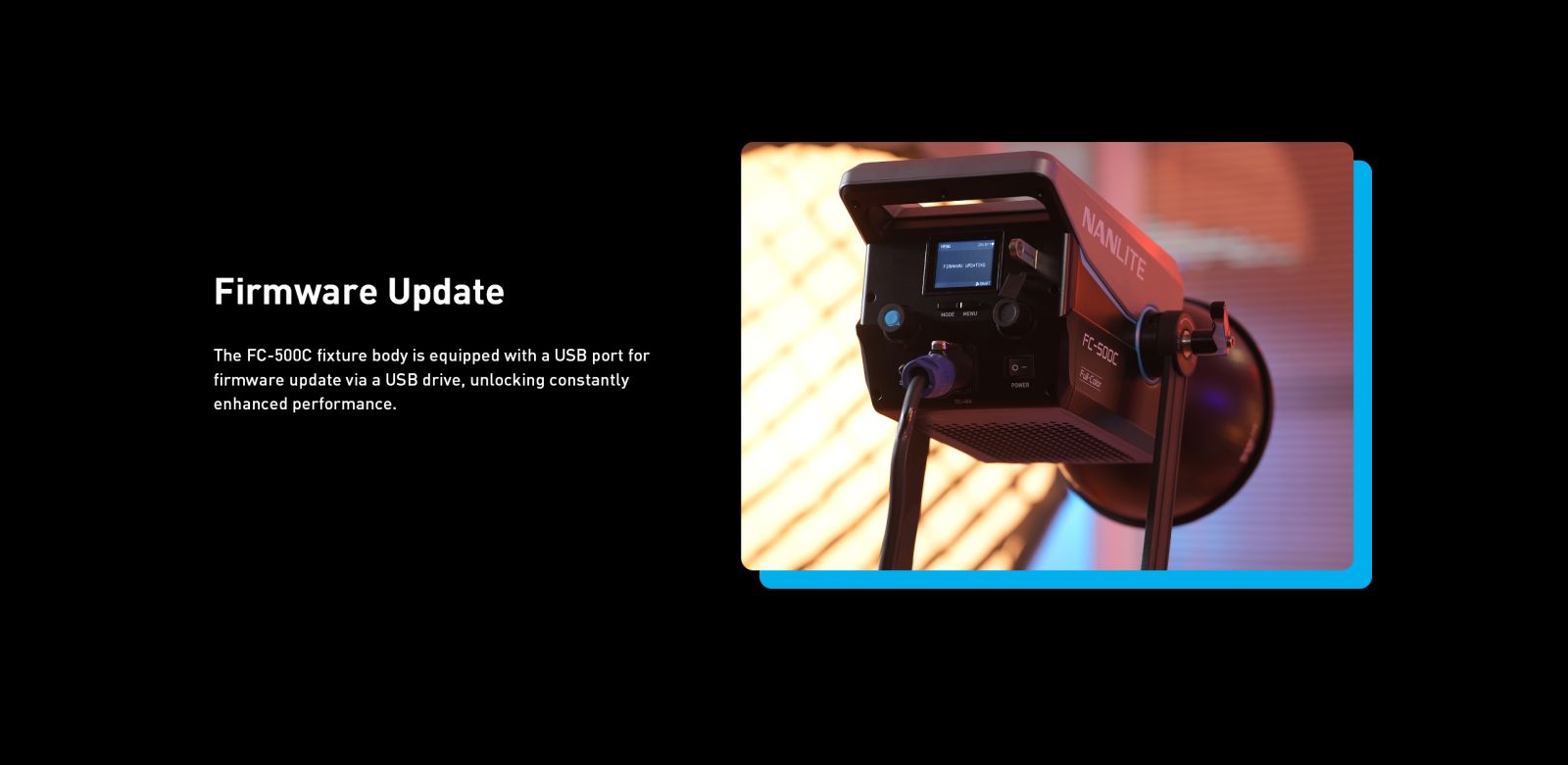

Rapidly adjust the angle of the beam with its 360° rotating yoke and single-sided, stepless lock. Smart fan modes give you total control over on-set sound. It has 15 built-in special effects, plus you can make your own and save them as presets in the app. A USB port allows future firmware updates so new features can be added, and can also power external DMX receivers (sold separately).

QUALITY THROUGHOUT

Like all Nanlite products, the FC-500C is built to high standardssuch as the glass-protected light source, that make a big difference in long-term reliability. The built-in 2.4G lets you use the WS-RC-C2 Handheld Remote when you'd rather not use your phone to control, and the WS-TB-1 Transmitter Box lets you control larger setups (both sold separately).

DESIGNED AND MADE AT NANLITE

One important distinction that makes Nanlite stand out is that Nanlite design, build, and test every single light in their own facility. This gives Nanlite the best possible control over Quality Assurance. Nanlite even make the cardboard boxes their lights come in because they weren't satisfied with the quality of the available options. Nanlite is a family-owned business that incorporates environmentally friendly practices, and the whole team are passionate about image making and creativity.

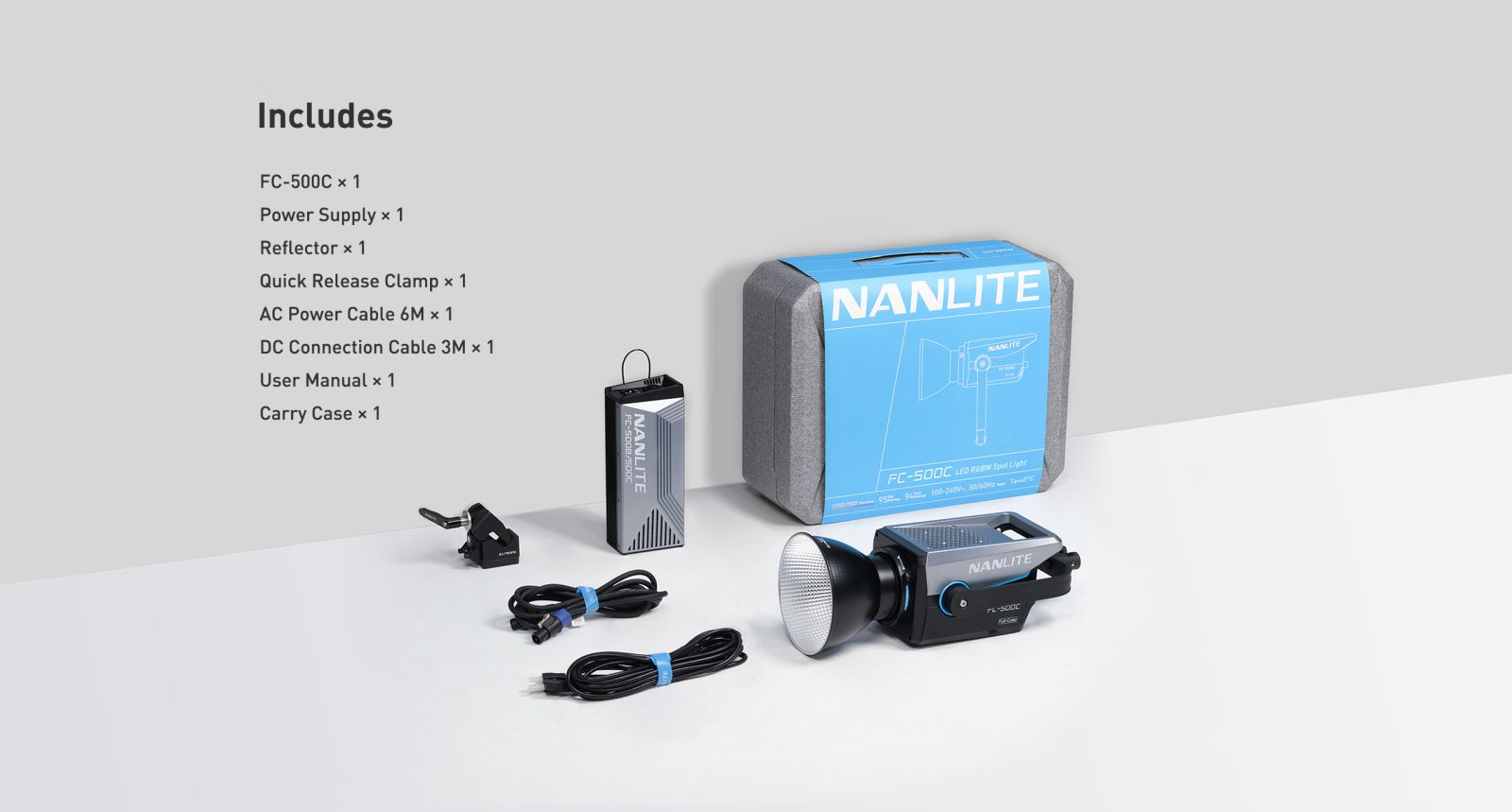

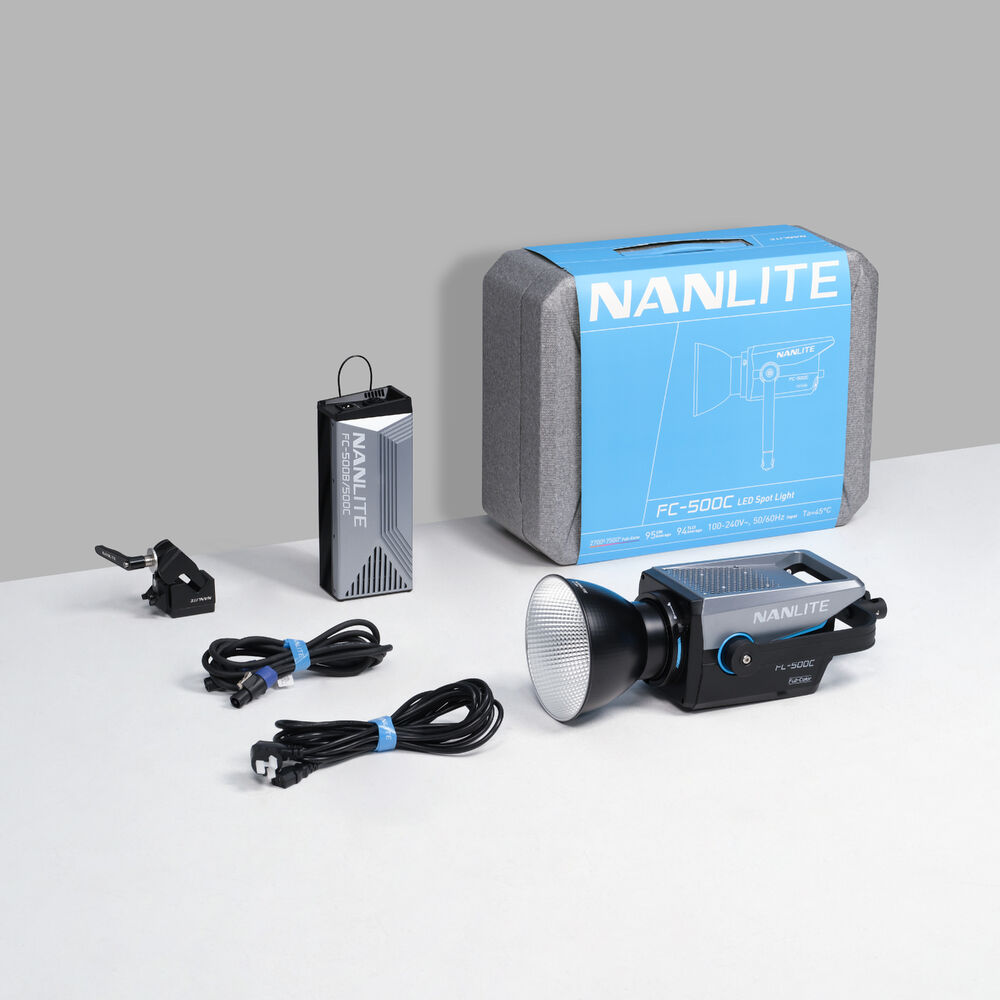

ITEM INCLUDES

• FC-500C RGBW LED Spotlight
• Power Supply
• Reflector
• AC Power Cable 19.6' (6M)
• Head Cable 9.8' (3M)
• FC-500C RGBW LED Spotlight
• User Manual

FC-500C Light Output

Bare Bulb
@ 1m 2700K    26280 lux / 2441 fc
@ 2m 2700K    6596 lux / 612 fc
@ 3m 2700K    3033 lux / 281 fc
@ 1m 3200K    27970 lux / 2598 fc
@ 2m 3200K    6975 lux / 648 fc
@ 3m 3200K    3215 lux / 298 fc
@ 1m 5600K    28770 lux / 2672 fc
@ 2m 5600K    7164 lux / 665 fc
@ 3m 5600K    3303 lux / 306 fc
@ 1m 6500K    28270 lux / 2626 fc
@ 2m 6500K    7070 lux / 656 fc
@ 3m 6500K    3256 lux / 302 fc
@ 1m 7500K    27080 lux / 2515 fc
@ 2m 7500K    6761 lux / 628 fc
@ 3m 7500K    3123 lux / 290 fc
@ 1m Red    5660 lux / 525 fc
@ 2m Red    1381 lux / 128 fc
@ 3m Red    654 lux / 60 fc
@ 1m Green    12930 lux / 1201 fc
@ 2m Green    3225 lux / 299 fc
@ 3m Green    1485 lux / 138 fc
@ 1m Blue    2240 lux / 208 fc
@ 2m Blue    570 lux / 53 fc
@ 3m Blue    256 lux / 23 fc

FC-500C with reflector
@ 1m 2700K with Reflector    52280 lux / 4857 fc
@ 2m 2700K with Reflector    11880 lux / 1103 fc
@ 3m 2700K with Reflector    5207 lux / 483 fc
@ 1m 3200K with Reflector    55520 lux / 5158 fc
@ 2m 3200K with Reflector    12620 lux / 1172 fc
@ 3m 3200K with Reflector    5532 lux / 514 fc
@ 1m 5600K with Reflector    57050 lux / 5300 fc
@ 2m 5600K with Reflector    12950 lux / 1203 fc
@ 3m 5600K with Reflector    5699 lux / 529 fc
@ 1m 6500K with Reflector    56290 lux / 5229 fc
@ 2m 6500K with Reflector    12850 lux / 1193 fc
@ 3m 6500K with Reflector    5624 lux / 522 fc

FC-500C with FL-20G Fresnel
@ 1m 2700K Spot    181000 lux / 16815 fc
@ 2m 2700K Spot    35870 lux / 3332 fc
@ 3m 2700K Spot    14530 lux / 1349 fc
@ 1m 2700K Flood    53460 lux / 4966 fc
@ 2m 2700K Flood    1377 lux / 128 fc
@ 3m 2700K Flood    6215 lux / 577 fc
@ 1m 3200K Spot    195000 lux / 18116 fc
@ 2m 3200K Spot    37920 lux / 3522 fc
@ 3m 3200K Spot    15290 lux / 1420 fc
@ 1m 3200K Flood    56680 lux / 5265 fc
@ 2m 3200K Flood    14550 lux / 1351 fc
@ 3m 3200K Flood    6587 lux / 612 fc
@ 1m 5600K Spot    over 200000 lux / over 18580 fc
@ 2m 5600K Spot    38980 lux / 3621 fc
@ 3m 5600K Spot    15600 lux / 1449 fc
@ 1m 5600K Flood    57830 lux / 5372 fc
@ 2m 5600K Flood    14880 lux / 1382 fc
@ 3m 5600K Flood    6738 lux / 626 fc
@ 1m 6500K Spot    over 200000 lux / over 18580 fc
@ 2m 6500K Spot    38500 lux / 3576 fc
@ 3m 6500K Spot    15480 lux / 1438 fc
@ 1m 6500K Flood    57690 lux / 5359 fc
@ 2m 6500K Flood    14810 lux / 1375 fc
@ 3m 6500K Flood    6724 lux / 624 fc
