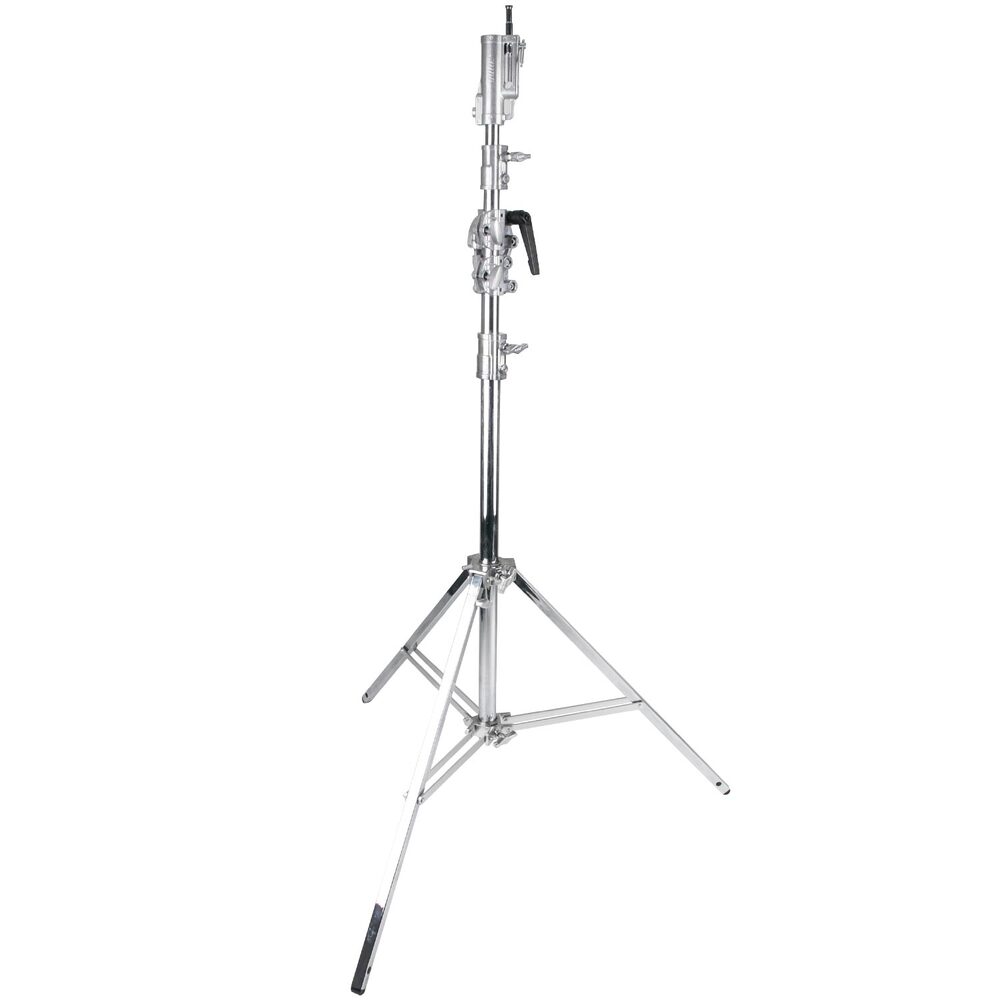

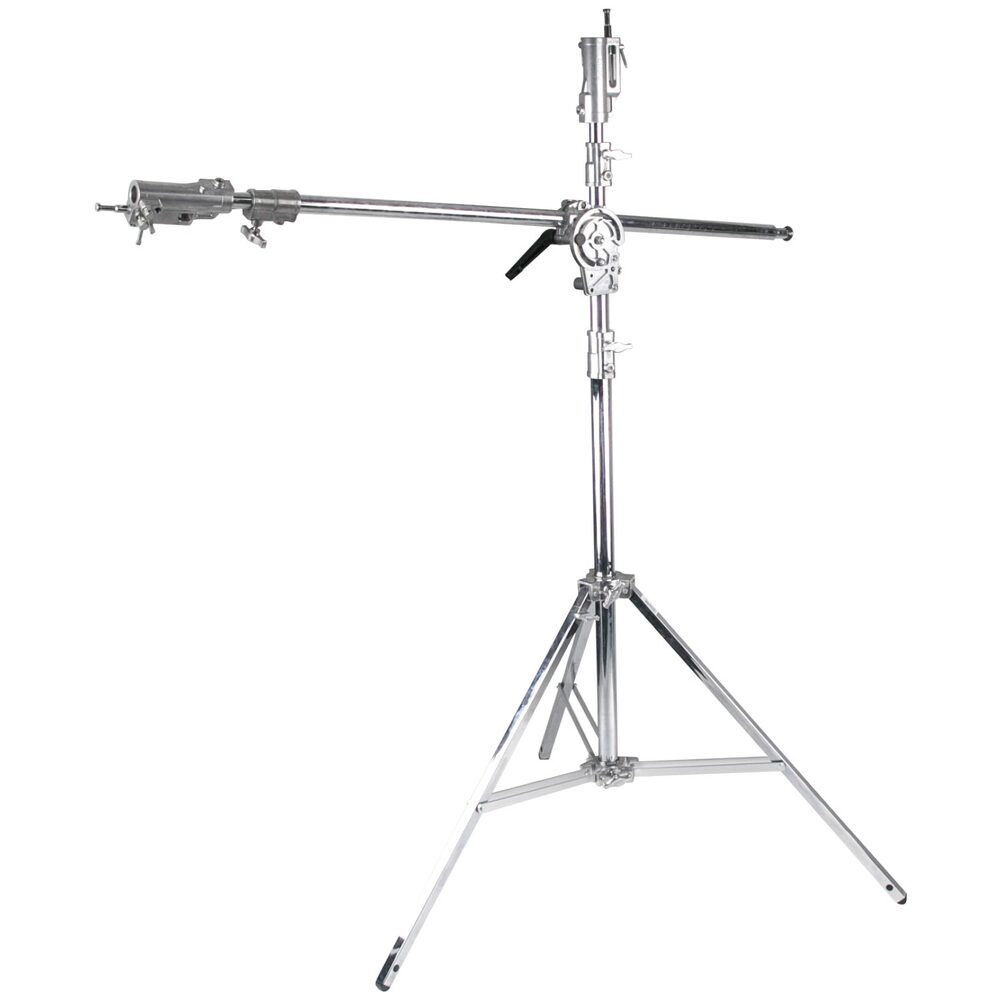

The Kupo 546M Junior Boom Stand is a versatile heavy duty light stand which reaches to 510cm, and also converts to a boom stand. By pivoting the top two sections from within the light stand, the can pivot and become a 280cm boom. With sturdily constructed chrome plated steel sections, square-end legs and a strong pivoting collar, the Kupo Junior Boom Stand offers our most stable support for a medium to large sized light fixture with a softbox or umbrella. It includes one levelling leg for stable support on uneven terrain. Optional casters make easy work of moving the boom around on location or in studio.
The triple function stand top includes a junior receiver, a baby pin, and a baby receiver. The baby pin can be positioned upward, downward, or extend from the end of the boom. The rear of the boom includes a hole to attach a sand bag for counterbalancing.
The Kupo 546M is an ideal replacement for the Avenger A4050CS Junior boom stand which is no longer available in Australia.
3 Risers 4 sections. Diameters: 45mm, 40mm, 35mm, 30mm
Maximum Height: 510cm in Light stand mode
Collapsed length: 160cm
Legs: 25X 25mm square legs. Chrome Plated Steel with one leveling leg.
Minimum boom extension: 155cm (61'')
Maximum load capacity at 155cm boom length: 30kg (66 lbs)
Maximum load capacity with boom retracted: 30kg (66 lbs)
Maximum boom extension: 280cm (110'')
Maximum loading at 280cm boom length: 8kg (17.6 lbs)
Footprint diameter 134cm
Weight 15kg
Compatible with the Kupo KC-100S castors, available separately
(KP546M)
One leg has an adjustable length to allow for leveling thie light stand and stabilizing the load on uneven terrain.

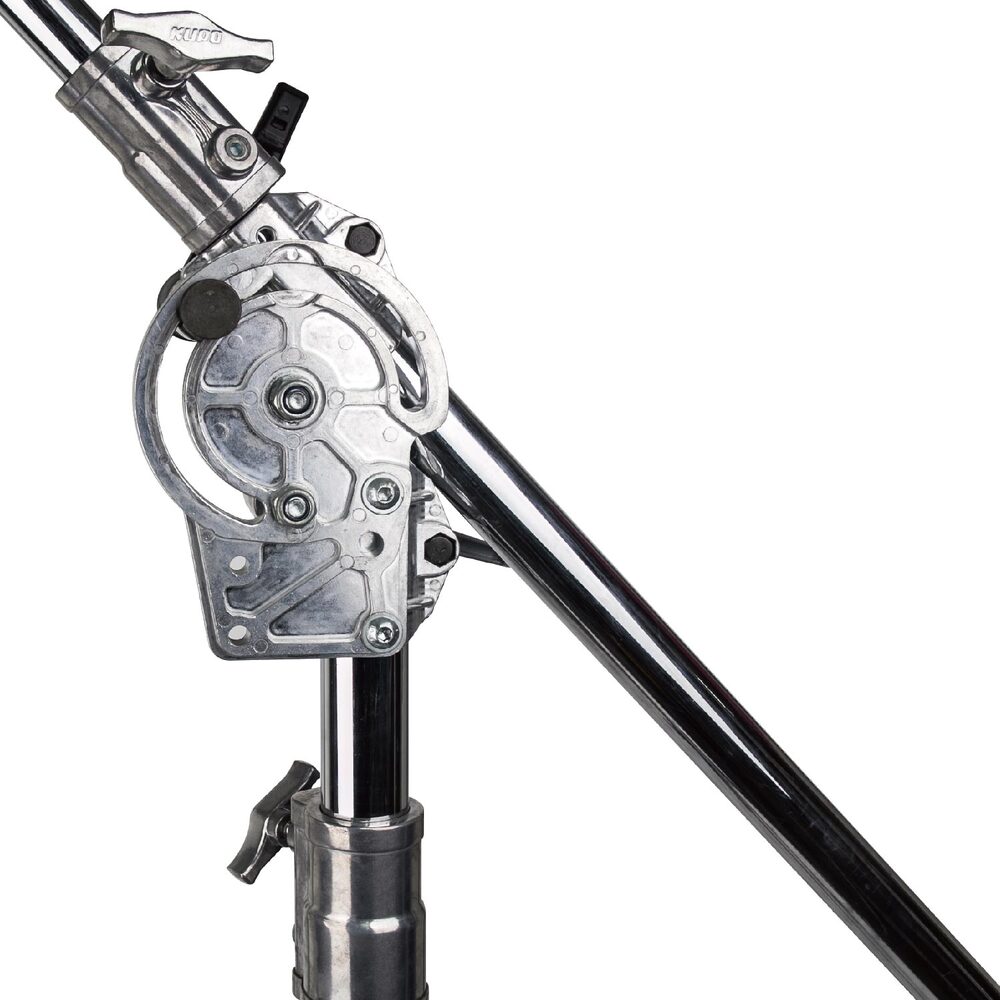

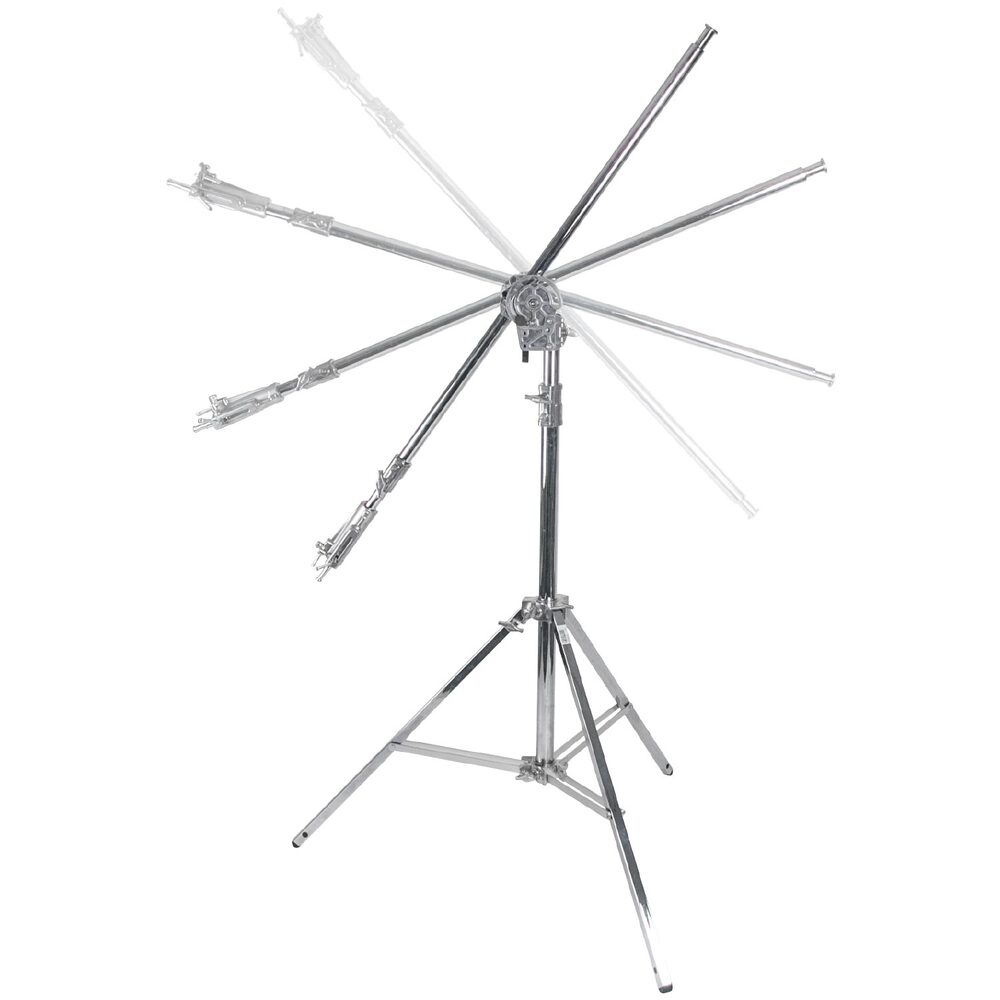

The Pivoting collar with a large handle allows the K stand to be easy used either as standard light stand or as a boom.

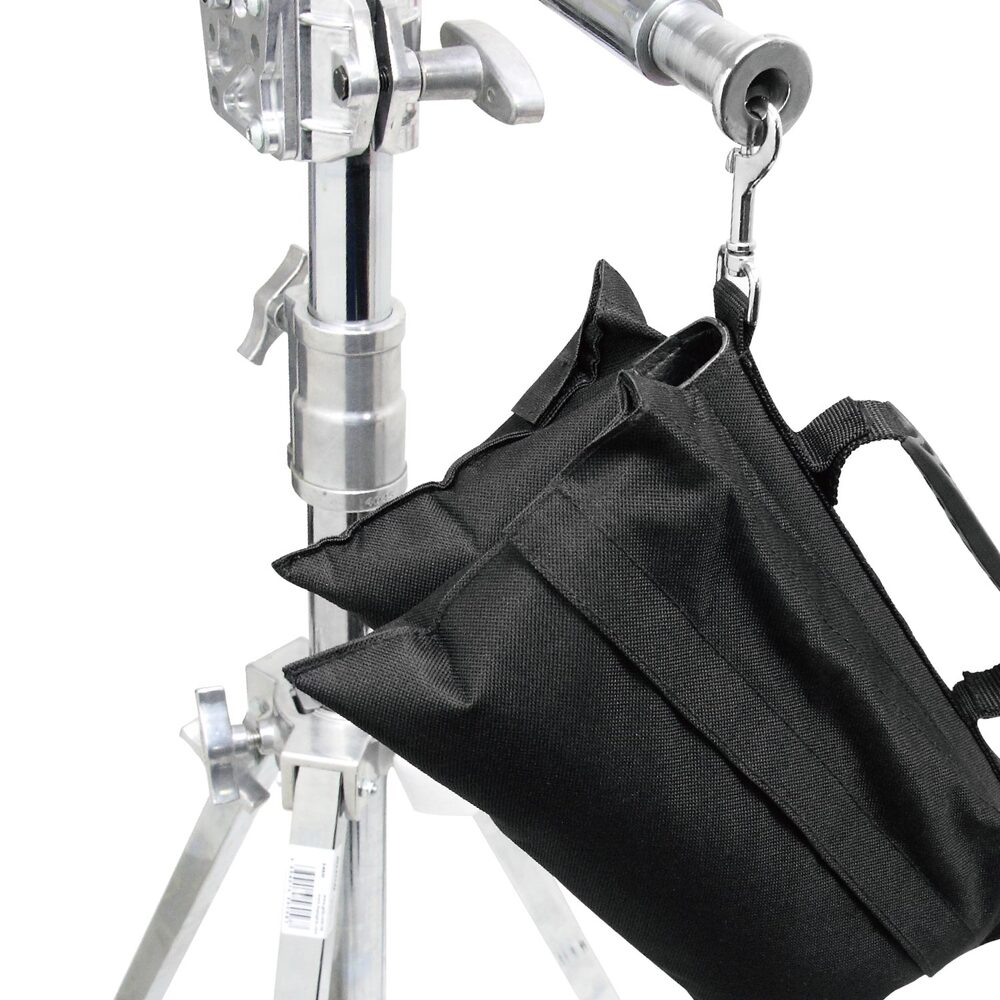

At the rear of the boom pole, there is a 14mm mount hole to connect counterweight.

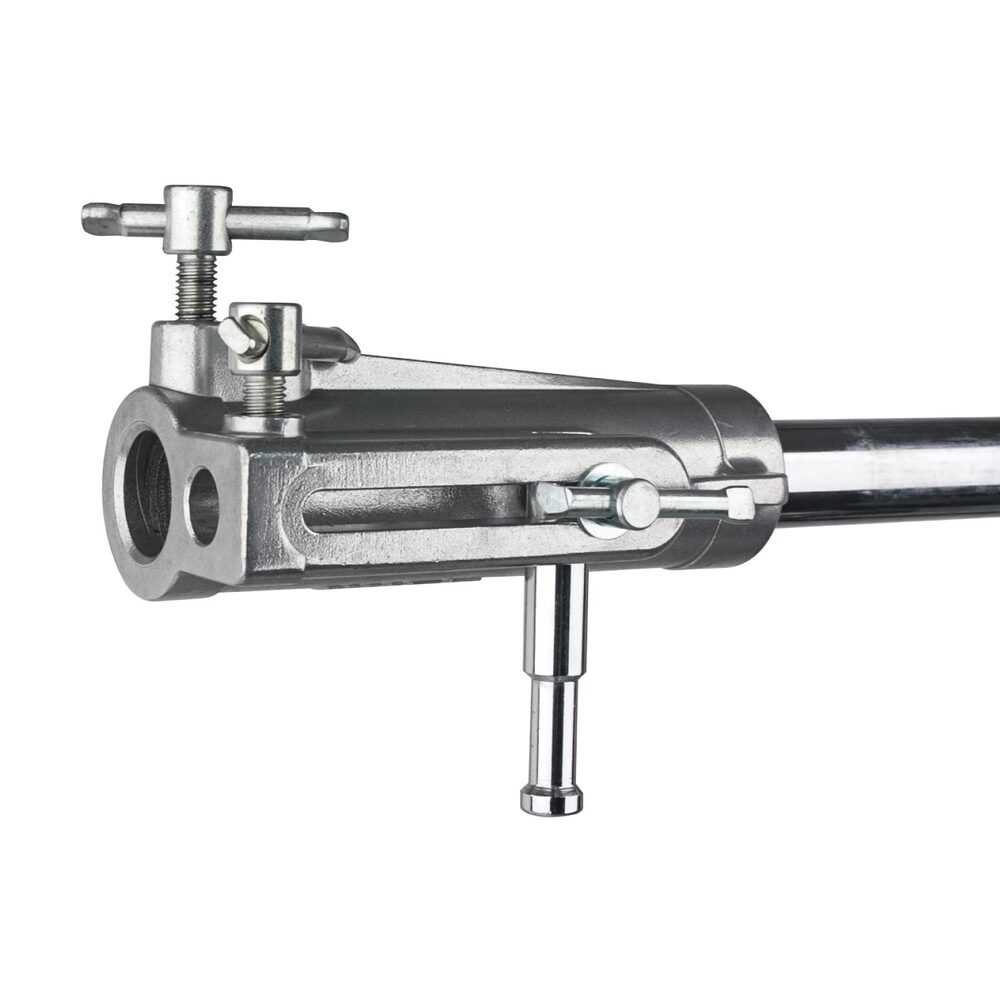

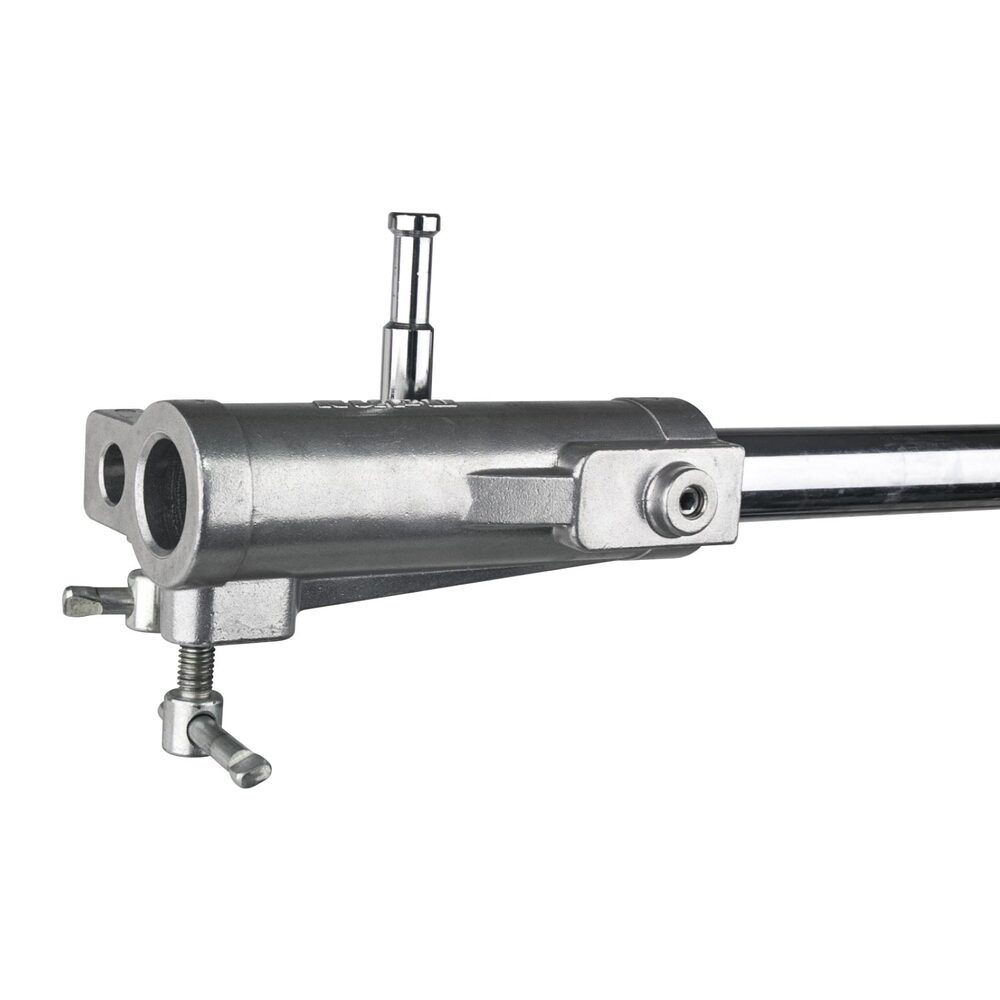

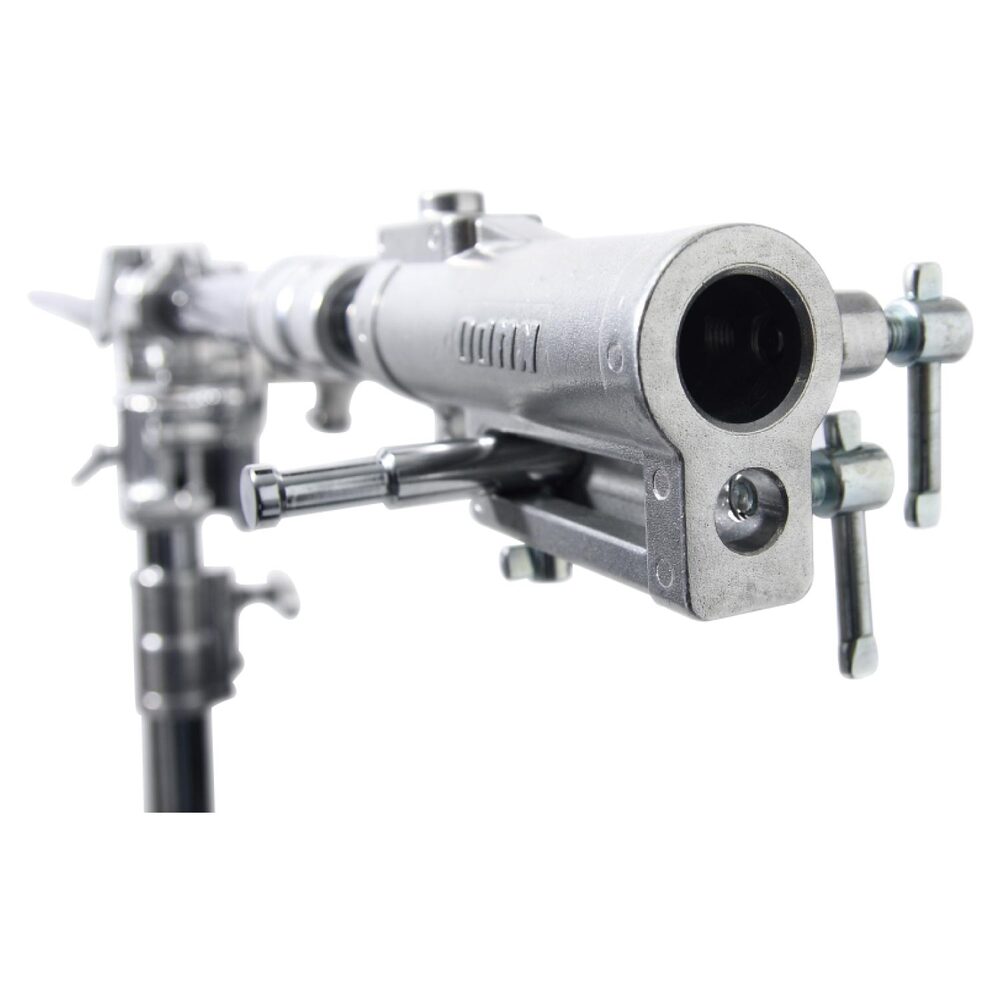

Atop the 546M K Stand is a triple mount option head, with a Junior 5/16 receiver, a baby 3/8" receiver, and an extendable 3/8" pin.
The optional casters, KC100S are recommended to easily move the K stand around on set.
3 Risers 4 sections. Diameters: 45mm, 40mm, 35mm, 30mm
Maximum Height: 510cm in Light stand mode
Collapsed length: 160cm
Legs: 25X 25mm square legs. Chrome Plated Steel with one leveling leg. Compatible with KPKC100S castor whel kit (available separately)
Minimum boom extension: 155cm (61'')
Maximum load capacity at 155cm boom length: 30kg (66 lbs)
Maximum load capacity with boom retracted: 30kg (66 lbs)
Maximum boom extension: 280cm (110'')
Maximum loading at 280cm boom length: 8kg (17.6 lbs)
Footprint diameter 134cm
Weight 15kg
SKU | KP546M |
Model # | 546M |
Barcode # | 6954016560567 |
Brand | Kupo |
Shipping Weight | 17.8000kg |
Shipping Width | 0.250m |
Shipping Height | 0.250m |
Shipping Length | 1.650m |
Shipping Cubic | 0.086933000m3 |
Assembled Length | 2.800m |
Assembled Height | 5.100m |
Assembled Width | 1.340m |
