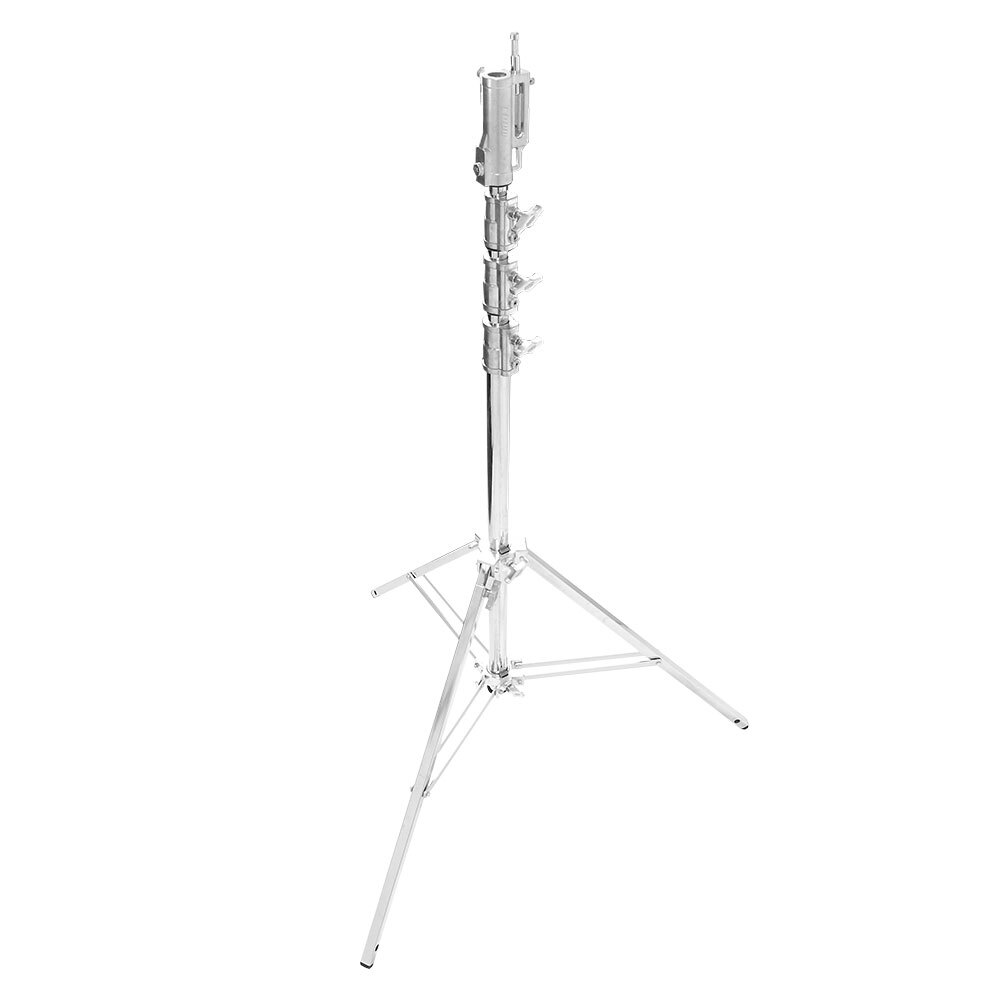

The Kupo 543M Master High Cine Stand features all-steel construction with chrome-plated finish. The high cine stand features a triple function universal head, the head features both a 28mm (1-1/8") junior receiver and a 16mm (5/8") baby receiver, plus a multi-direction 16mm (5/8) stud. It has a levelling leg that enables the user to extend one leg more than the others to level stand on an incline like stairs or uneven terrain. Whether you are mounting a large Fresnel, butterfly frame or a menace arm, this stand can safely support your lighting at full height due to its strength and large 140cm footprint diameter for great stability.

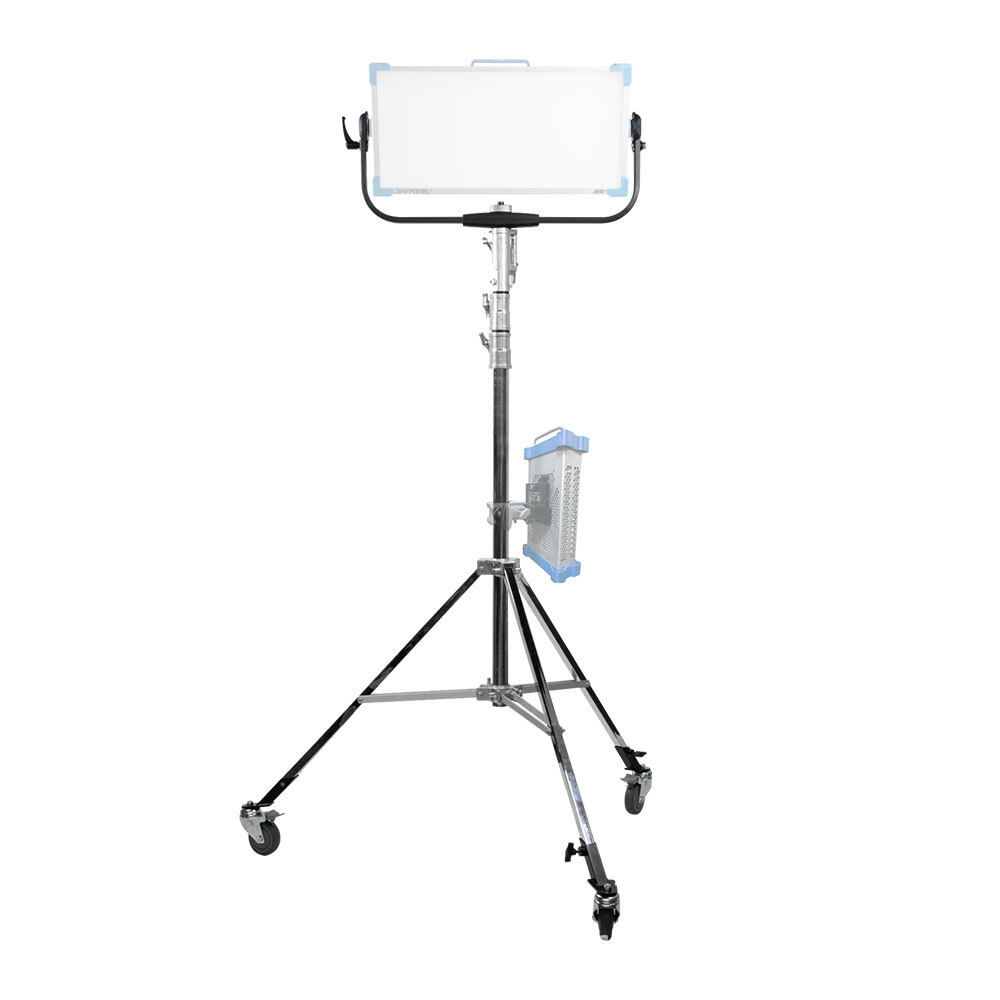

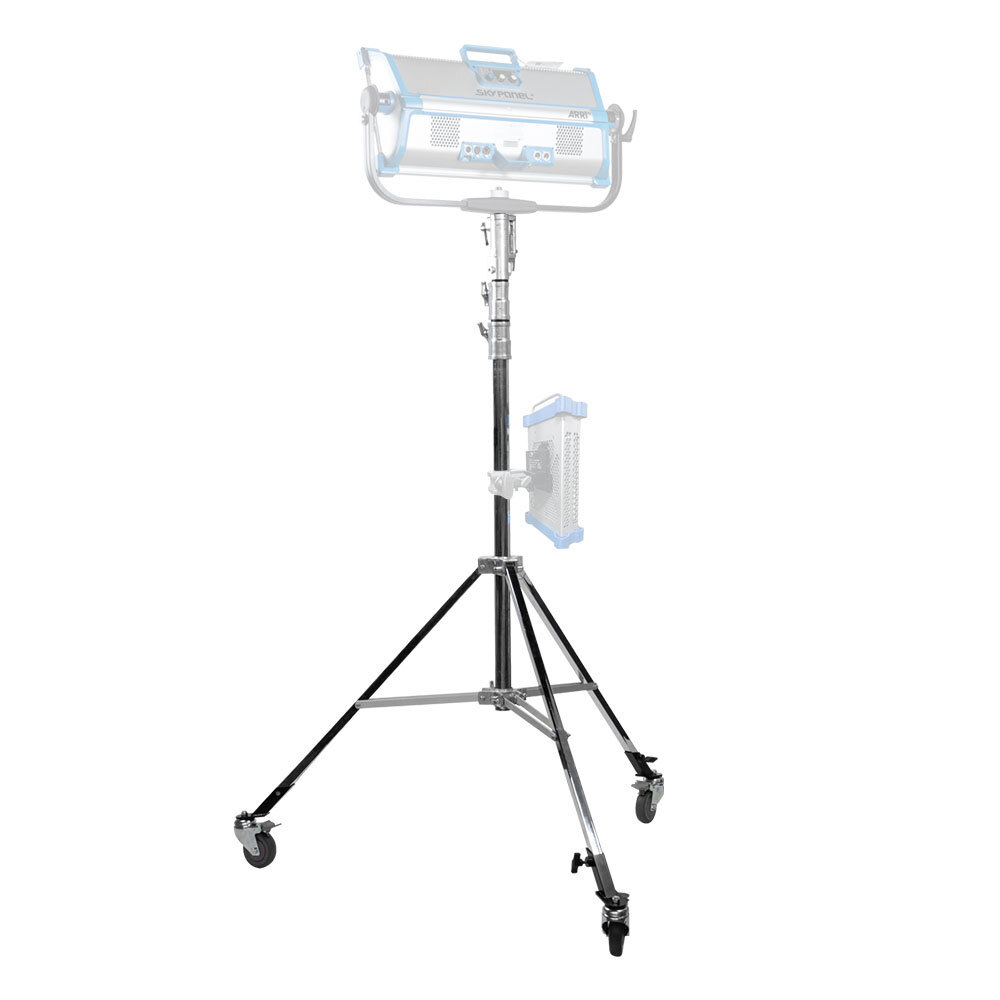

Compatible with the Kupo KC-100S castors, available separately
3 risers, 4 sections of diameters 45mm, 40mm, 35mm, 30mm
Leg diameter of 25mm x 25mm, with 1 levelling leg
Chrome plated steel construction
Folded dimensions: 145cm
Fully extended height: 420cm
Minimum working height: 140cm
Product weight: 12.5kg
Footprint diameter: 140cm
Maximum safe working load: 40kg
Compatible with Kupo KC100S casters (not included)
Minimum Extension Height 174.62 cm
Maximum Extension Height 420 cm
Maximum Load 40 kg
Footprint Diameter 140 cm
Weight 12 kg
Risers 3
Sections 4
1st Riser Diameter 45 mm
2nd Riser Diameter 40 mm
3rd Riser Diameter 35 mm
4th Riser Diameter 30 mm
Leg Diameter 25 mm
Primary Material Chrome Plated Steel
Secondary Material Aluminum Locking Collars
Tertiary Material Stainless Steel Bolts
Leveling Leg Yes
Fixed Stand Adapter Triple Function Universal Head with 1-1/8" and 5/8" receivers with multi-direction 5/8 in Stud
Stand Adapter Type Welded
Spring cushioned No
Closed Length 145 cm
Folded Length 149.7 cm
Folded Width 14.3 cm
Folded Height 14.3 cm
(KP543M)
Length 149.7 cm
Width 14.3 cm
Height 14.3 cm
Weight 12 kg
Risers 3
Sections 4
1st Riser Diameter 45 mm
2nd Riser Diameter 40 mm
3rd Riser Diameter 35 mm
4th Riser Diameter 30 mm
Leg Diameter 25 mm
Primary Material Chrome Plated Steel
Secondary Material Aluminum Locking Collars
Tertiary Material Stainless Steel Bolts
Leveling Leg Yes
Fixed Stand Adapter Triple Function Universal Head with 1-1/8" and 5/8" receivers with multi-direction 5/8 in Stud
Stand Adapter Type Welded
Spring cushioned No
Closed Length 145 cm
Minimum Extension Height 174.62 cm
Maximum Extension Height 420 cm
Maximum Load 40 kg
Footprint Diameter 140 cm
SKU | KP543M |
Barcode # | 6954016560956 |
Brand | Kupo |
Shipping Weight | 14.0000kg |
Shipping Width | 0.160m |
Shipping Height | 0.160m |
Shipping Length | 1.600m |
Shipping Cubic | 0.040960000m3 |
