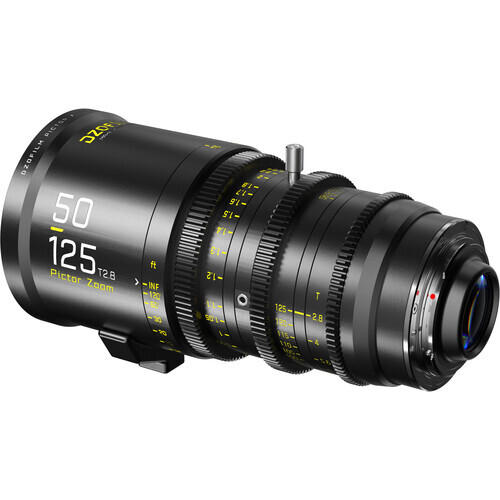

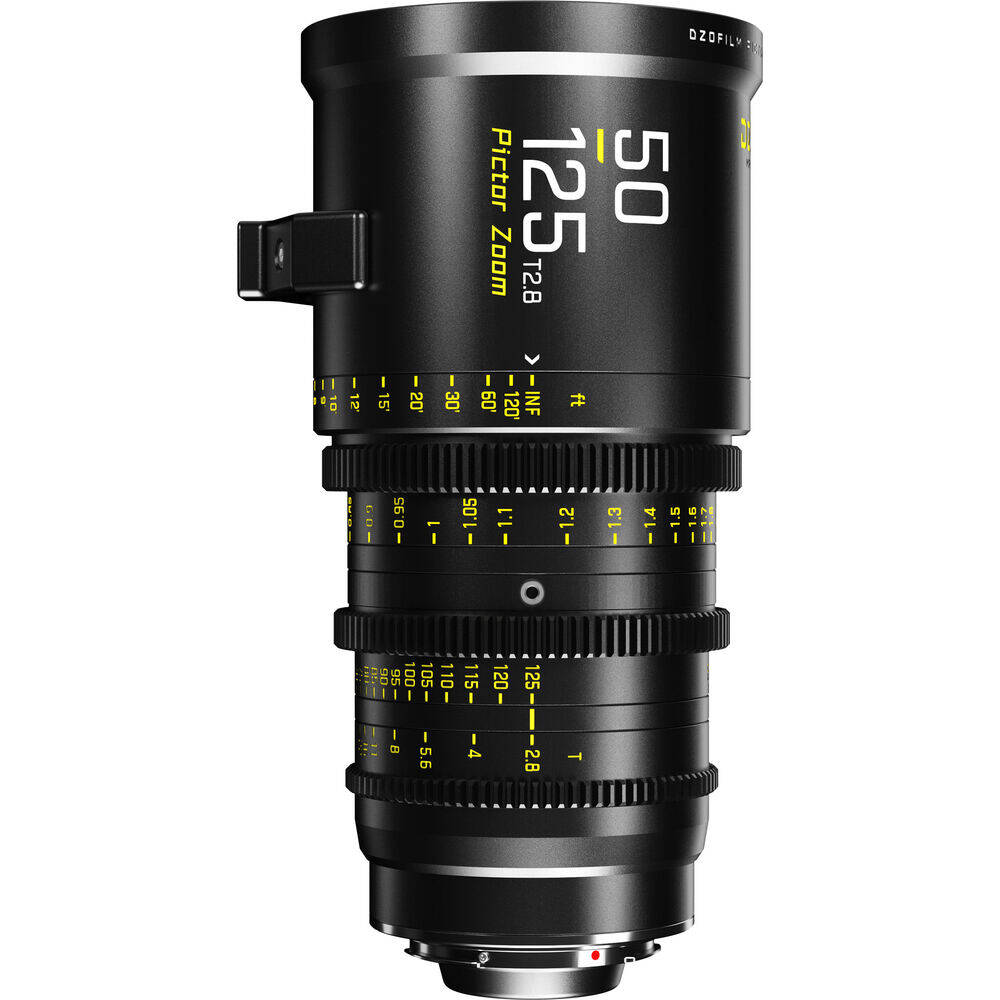

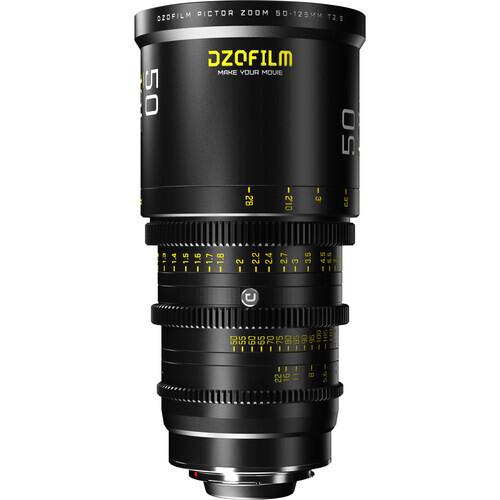

A parfocal cine lens, the DZO Pictor 50 to 125mm T2.8 Super35 Parfocal Zoom Lens features a relatively fast maximum aperture of T2.8 with an aperture range of T2.8 to T22. As you would expect from a cinema-style zoom, the lens is parfocal, meaning it holds focus throughout the zoom range. The internal focus design with floating elements virtually eliminates focus breathing. It covers a Super35 image circle, comes standard with an interchangeable PL mount, and includes an EF mount.

Please Note: According to the manufacturer, when converted to EF mount this lens is not compatible with DSLR cameras that have an EF mount. However, it is compatible with mirrorless cameras that have an EF mount, including Blackmagic Design cameras.

Features

Maintains focus throughout the zoom range
Minimal breathing
16-blade iris produces round out-of-focus highlights
T2.8 to T22 aperture
95mm front diameter
Compatible with standard cine-style lens accessories

Wider, Closer For Deeper Image Immersion

With a minimum focusing distance of 0.4m (15.74’’), less than one arm’s length, the lens enables you to shoot tighter close-ups in limited space environments with the curvature of field being significantly controlled, creating a more subjective perspective by bringing the audiences closer to the characters and immersing them in the story.

A Creative Vision Inspires Brilliant Ideas

The 12–25mm lens can capture more of the visual spectrum than human eyes can see, and the perspective effect of ultra–wide angle can draw attention to the foreground while enhancing the depth of field and tension. Additionally, the exceptional optical design makes it possible to significantly control the distortion when shooting at maximum wide-open aperture, making it ideal for creating majestic and surreal images.

Explore Wider Horizon

DZOFILM Pictor 12-25mm T2.8, the latest Super 35 wide-angle lens, captures wide shots with ease. Together with the Pictor 14-30, 20-55 & 50-125, forms an integrality covering all sort of scenes.

Correlated And Sense Of Space

Deeper DOF and wider FOV captures broaderwider background. Rendering the atmosphere, clearly showings the relationship among subjects, characters and surroundings. Expanding distance between objects and background, reflects the artistic sense of space.

Capturing

The distortion of wide angle lens, exaggerates emotion of characters and highlights the dramatic expression.

Visual Effect

Capturing exaggerating movement, aggrandizes the rhythm of image and enhances the visual impact of the story.

Professional Cine Lenses With Concrete Build

DZOFILM is devoted to exploring the aesthetic of film and design of optics. Both mechanics and optics are designed to be compact and versatile, allowing users to enjoy the smooth and precise operation and every shooting moment with Pictor Zoom.

Parfocal Design

Center image stay sharp during zooming in or out.

No matter from close-up to wide shot, or rapidly zoom out to long shot, under Parfocal design. focus kkeeps still all the way along.

Minimal Breathing

Thanks to the floating structure, the breathing of Pictor zoom lenses are negligible during focusing.

Versatile In Ultra Compact

At just 1.6kg (3.5 lbs), Pictor zoom can be easily mounted on a crane, jib, tripod, ROV and other moving platforms, and provides safer and more efficient work methods by reducing heavy lifting. Be a better run-and-gun filmmaker with no fear of complicated scenes or quick shooting, save time by not changing lenses frequently, use Pictor zoom, and never miss an inspiring moment.

Gentle Sharpness & Vivid Look

From feature film, commercial, to documentary, Pictor Zoom captures crisp details while expressing organic look and cinematic texture.

[Spot Effect]
Increases Sense Of Separation

Dreamatic Bokeh & Esthetic Transition

During the focus fall-off, 16 blades T2.8 iris generated soft bokeh. The natural transition from focus to de-focus conveys the ambiance and highlights the subject.

Speed Up Your Shooting!

Consistent Design & Higher Efficiency

Highly consistent in color and mechanical control, satisfying most shooting demands. Efficient management with the consistent ergonomics of standard M0.8 gear rings. Multiple ways of mounting follow focus, speed up your shooting.

Seek For More Possibility

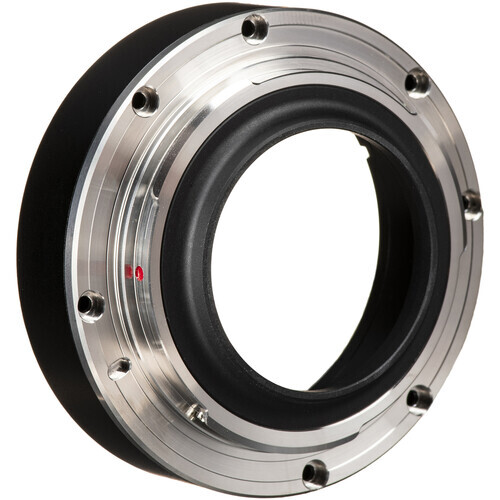

Interchangeable mount system compatible with PL, EF, X, L, RF, E mounts, provides more possibility of shooting videos.

Parameter

Focal Length	20-55mm	50-125mm	14-30mm
Mount	PL/EF
Aperture	T2.8 - T22
Magnification Ratio	≈2.75X	≈2.5X	≈2.14X
Image Circle	24.89 mm*19.3 mm（φ31.5 mm) ratio 1.33:1
Construction of Optics	18pcs in 15 groups	18pcs in 13groups	21pcs in 17groups
Flange Distance	52mm(PL)/44.14mm(EF)
Close Focus Distance	0.6m/2ft	0.8m/2ft8in	0.6m/2ft
Aperture Rotation Angle	65°	72°	61°
Focus Rotation Angle	270°
Zoom Rotation Angle	100°
Front Diameter	φ95.0164mm(PL mount) φ95.0171.9mm(EF mount)
Iris Blades	16
Gear Pitch	0.8 Mod	0.8 Mod
Front Outer Diameter	φ95 mm
Filter Size	86mm
Length	164mm (PL) 6.46"/171.9mm (EF) 6.77"	175mm (PL) 6.89"/182.9mm (EF) 7.20"	173mm(PL)6.81"/181mm (EF)7.13"
Weight	≈1520g	≈1700g	≈1880g

What's in the box:

DZOFilm Pictor 50-125mm T2.8 Super35 Parfocal Zoom Lens (PL and EF Mounts, Black)
Front Lens Cap
PL Rear Lens Cap
Shim Set
Support Rod
Canon EF-Mount Bayonet
EF Rear Lens Cap

(DZ7220001B)

SKU	DZ7220001B
Barcode #	6970604942027
Brand	DZOFILM
Shipping Weight	1.5000kg
Shipping Width	0.120m
Shipping Height	0.120m
Shipping Length	0.200m
Shipping Cubic	0.002880000m3
