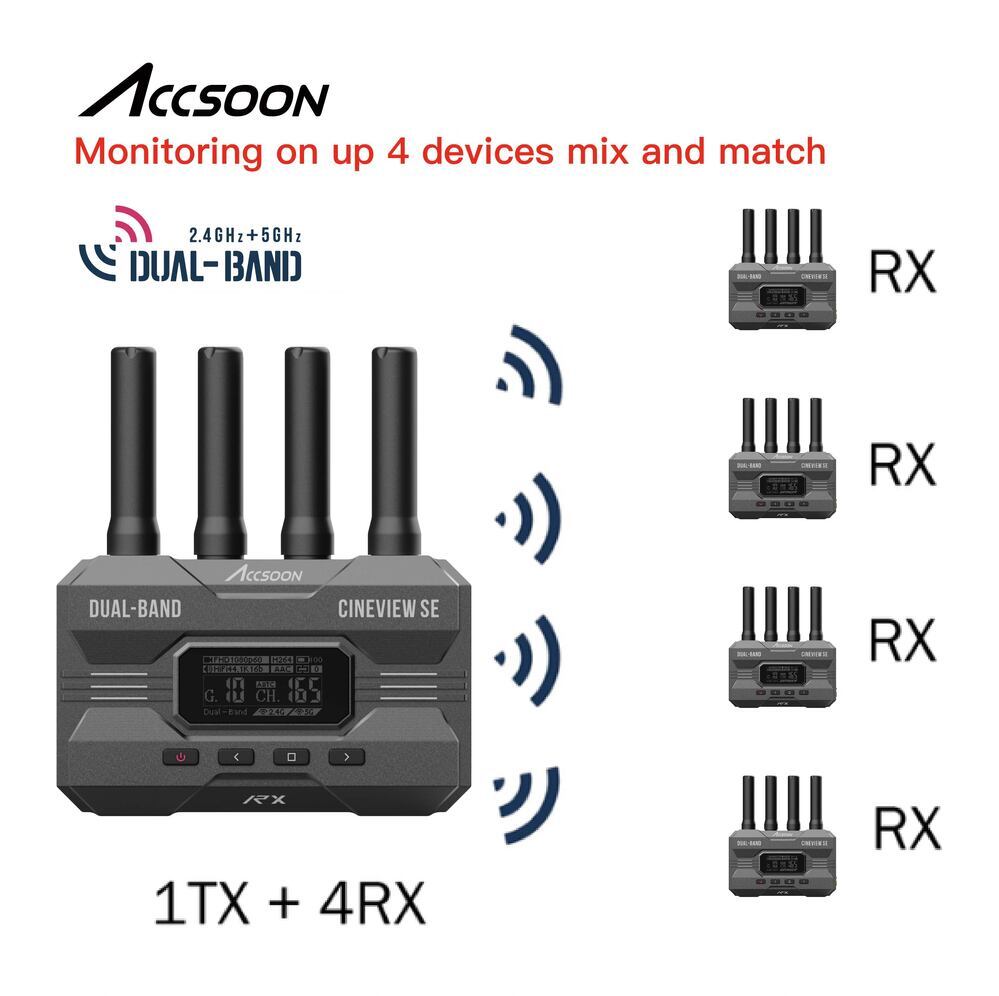

The CineView SE Multi-Spectrum Wireless Video Transmission System from Accsoon has been updated from previous models with an even smaller and lighter form factor. With the SE, you can now send signal to a total of four devices simultaneously over distances up to 1200' with only a 50ms delay, and you can still transmit to any mix of receivers and iOS/Android smartphones and tablets.
Like other models, the CineView SE allows you to send a 1080p60 camera signal to the included receiver plus up to three mobile devices. This versatile wireless video transmission system provides a cost-effective way of allowing four people on set to monitor an HDMI or SDI camera signal. Its Quad technology allows you to transmit exact copies of your transmission over 2.4 and 5 GHz signals for redundant, high-quality images.

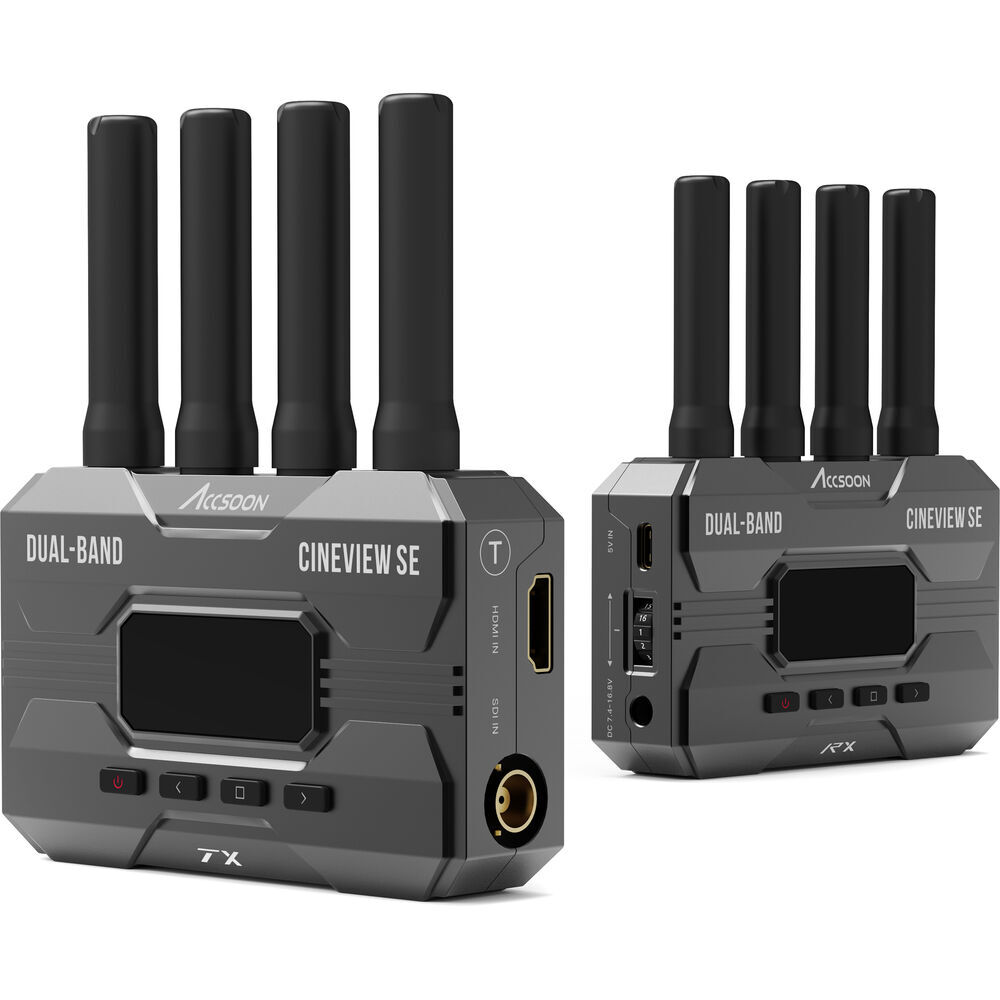

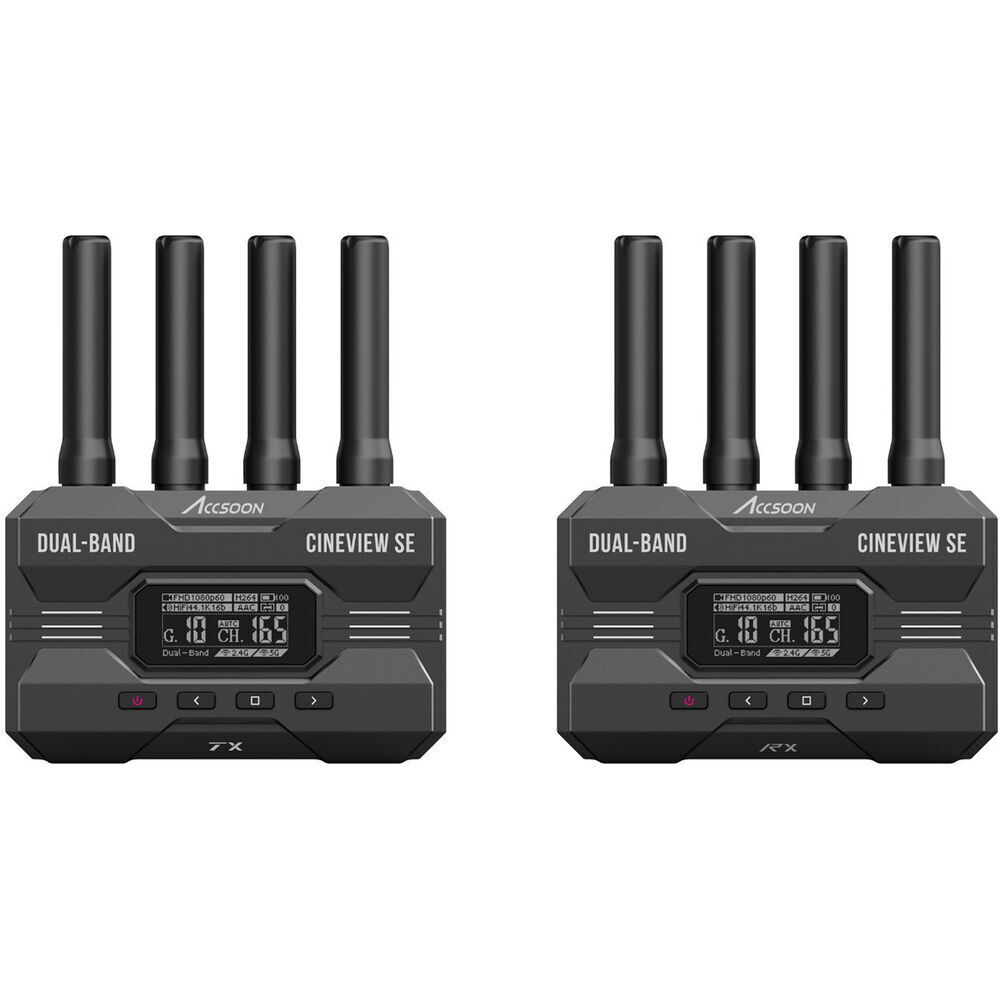

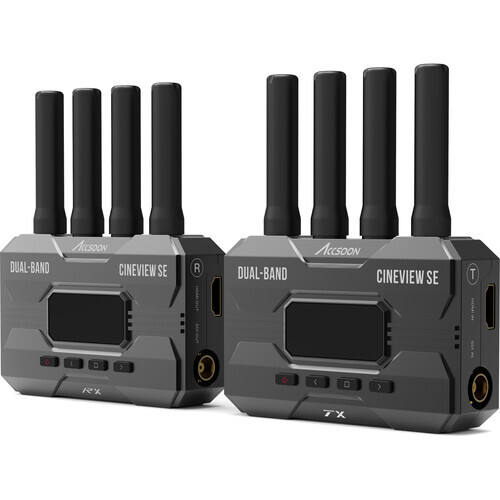

The included dedicated receiver is easy to set up and pair, and it features an HDMI and SDI output. The free-to-download companion app installs on a tablet or smartphone and it features image tools such as peaking, zebras, false colour for exposure, and .cube 3D LUT overlay, and new features include Smart Sharpening and Onion Skin overlay. The transmitter and receiver feature DC power inputs, USB Type-C power inputs, and they also support an optional L-series battery that can power the set for up to 12 hours.
The system transmits two identical copies of your camera's video output on both 2.4 and 5 GHz frequencies at the same time. When these signals arrive at the receiver unit, they are instantly combined as needed to create the final high-quality video feed
CineView SE | CineView HE | CineView Quad | CineView Nano | |
---|---|---|---|---|
Latency | <50ms | <60ms | <60ms | <60ms |
Range | 1200ft | 1200ft | 500ft | 500ft |
Input&Output | SDI IN&OUT HDMI IN&OUT |
HDMI IN&OUT HDMI LOOP OUT UVC Live Streaming |
SDI IN&OUT HDMI IN&OUT |
HDMI IN |
Antenna | Swappable Antenna* |
Swappable Antenna* |
Built-in Antenna |
Built-in Antenna |
Powered By | NP-F Battery 7.4-16.8V DC IN 5V USB-C IN |
NP-F Battery 7.4-16.8V DC IN 5V USB-C IN |
NP-F Battery 7.4-16.8V DC IN |
NP-F Battery 5V USB-C IN |
Dimensions | 105mmx66mmx32mm (Antennas not included) |
105mmx66mmx32mm (Antennas not included) |
105mmx66mmx31mm (Antennas not included) |
76mmx113mmx20mm (Antennas not included) |
Weight | 210g (Antennas not included) | 200g (Antennas included) | 225g (Antennas included) | 72.3g (Antennas Not Included) |
CineView SE Details
Projects | Transmitter |
---|---|
Video Input | SDI/HDMI |
SDI Input Format | 1080p 23.98/24/25/29.97/30/50/59.94/60fps Level A/B |
HDMI Input Format | 1080p 23.98/24/25/29.97/30/50/59.94/60fps |
DC Port | 5.5mmx2.1mm center positive |
DC Voltage | 7.4~16.8V |
Audio | 44.1KHz/48KHz 16bit/24bit PCM |
Latency | <0.05s (Camera latency not included) |
OLED Display | 1.3inch |
Transmission Power | 17~20dBm |
Transmission Range | 1200ft (No obstacles, no interference) |
Power Consumption | 4.5Watt (Typical) |
Operating Environment Temperature | -10~40℃ |
Dimensions | 105mmx66mmx32mm (Antennas not included) |
Weight | 210g (Antennas not included) |
Projects | Receiver |
---|---|
Video Output | SDI/HDMI |
SDI Output Format | 1080p 24/25/30/50/60fps Level A |
HDMI Output Format | 1080p 24/25/30/50/60fps |
DC Port | 5.5mmx2.1mm center positive |
DC Voltage | 7.4~16.8V |
OLED Display | 1.3inch |
Power Consumption | 3.5Watt (Typical) |
Operating Environment Temperature | -10~40℃ |
Dimensions | 105mmx66mmx32mm (Antennas not included) |
Weight | 210g (Antennas not included) |
(ACWIT04SE)
SKU | ACWIT04SE |
Barcode # | 0664918771751 |
Brand | Accsoon |
Shipping Weight | 0.8000kg |
Shipping Width | 0.150m |
Shipping Height | 0.050m |
Shipping Length | 0.200m |
Shipping Cubic | 0.001500000m3 |
